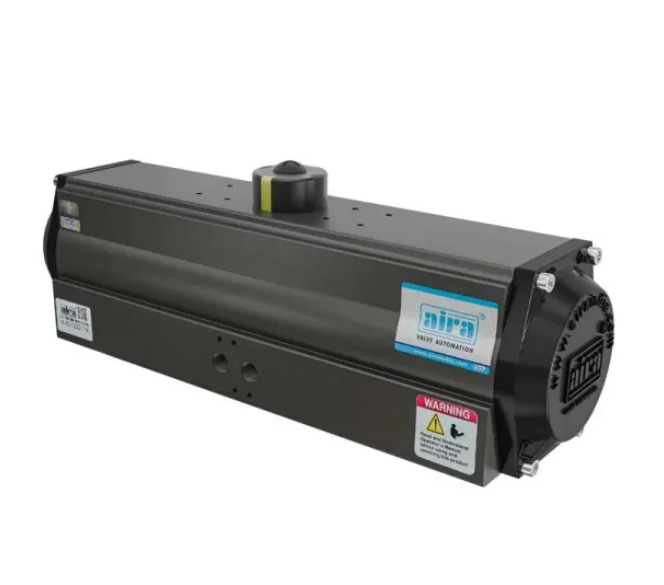

180° Rotation Double Acting Actuator

The double acting pneumatic rotary actuators are available with 180° rotation. The quarter-turn family valves like ball valves, butterfly valves, and plug valves required only 90° rotation to come into action. While multi-way valves like 3 way or 4 way valves require 180° rotation, because of this the double acting pneumatic actuator 180° is used. To operate a multi-way ball valve or plug valve remotely, you need to install the pneumatic actuator with 180° rotation. There are 180° Pneumatic Single Acting Rotary Actuators Rotates are also available.

Specification & Standard

Size Range

ARA-328 To ARA-1108

Temperature Range

-20°C TO 90°C

Working Pressure

3 To 8 Bar

Method Of Transmission

Rack And Pinion Type

Actuation

Double Acting

Body

Extruded Aluminium Hard Anodized

Caps And Rack

Aluminium Pressure Die Cast

Pinion

EN 8

Seals

Nitrile

Air Pressure

Normal Air Supply Pressure: 3KG/CM², Air Supply Pressure: 8KG/CM² Max

Actuator Design

ISO 5211 (Actuator Can Be Quickly And Easily Mounting)

Rotation
