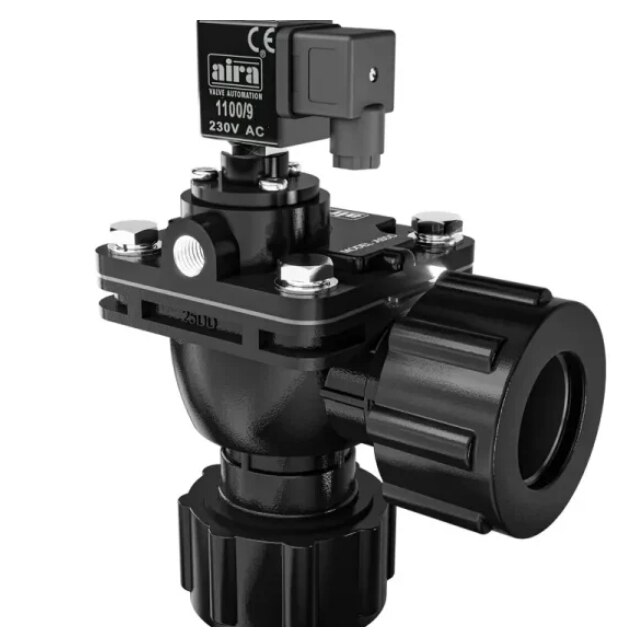

2-2 Way Angle Type Dust Collector Union Pulse Valve

“aira” Offers Superior performance, Easy maintenance diaphragm valve available with dresser nut. Outlet at 90O to inlet valve are available as remote pilot valve and may be converted to integral pilot. Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations Including bag filters, Cartridge filters, Envelope filters, Ceramic Filters & Sintered metal fiber filters.

Specification & Standard

Size Range

1“ To 1.1/2” Screwed

Tempreature Range

Rated For 80°C max. ( For High Temperature upto 125°C Viton Diaphragm With Viton Seat Can Be Provide )

Pressurre Class

0.6 To 8.5 Bar Max

Media

Dust Collector application, Bag Filter, Envelope Filter, Ceramic Filter

Body Material

Aluminium

Seat Material

NBR, Viton

Certification

CE

Disc Material

Aluminium
