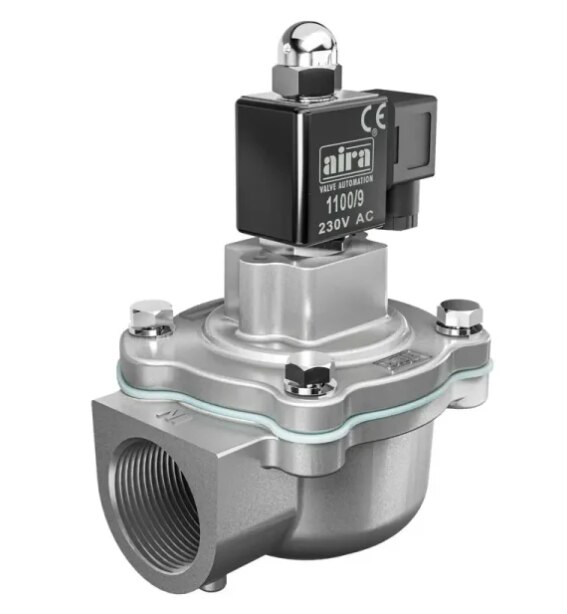

2-2 Way Dust Collector Solenoid Valve

“aira” Offers high performance diaphragm operated pulse and pilot solenoid valves with threaded ports. Available with integral pilot or as remotely pilot valves. Out let at 90O to inlet. The pulse valves have just one moving part, the Springless construction of diaphragm providing fast ON-OFF operation. This high speed operation saves compressed air and provides kind of shock wave necessary to free the dust from filter bags.

Specification & Standard

Size Range

1/2“ To 1.1/2” Screwed

Tempreature Range

Rated For 80°C max. ( For High Temperature upto 125°C Viton Diaphragm With Viton Seat Can Be Provide )

Pressurre Class

0.6 To 8.5 Bar Max

Media

Dust Collector Application, Cartridge Filter, Envelope Filter.

Body Material

Aluminium

Seat Material

NBR

Certification

CE
