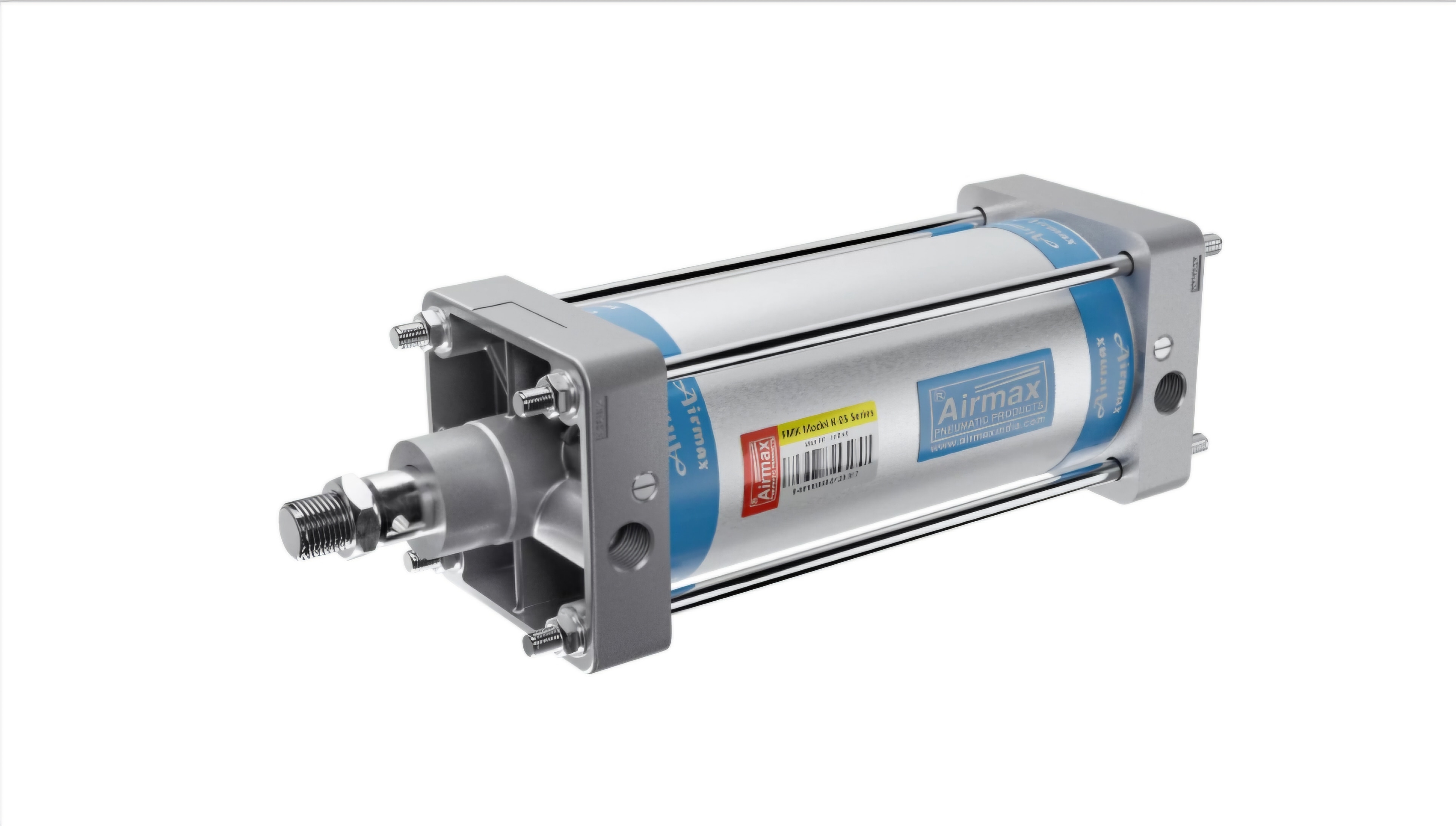

FMK Model K-05 Series

Bore (mm) 25 l 40 l 50 l 65 l 75 l 100 l 125 l 150 l 200 l 250

Piston Rod 10 l 16 l 16 l 20 l 25 l 25 l 32 l 32 l 40 l 50

Stroke 25mm to 1000mm (Up to 2000mm)

Seals Buna – N / P.U. / Hi - Nitril (Viton on Request)

Pressure 0.5 ~ 10 kg/cm²

Temperature 80°C / 100°C / 180°C Max.

Tube Aluminium Hard Anodized

End Cover Aluminium Pressure Die Cast

Mounting

Eye Rod Mounting, Fork Mounting, Front & Rear Trunnion Mounting, Pivot Mounting, Center Lug Mounting, Pivot Bracket & Pin Mounting, Rod End Aligner Mounting, Foot Bracket Mounting, Swivel Flange, Fixed Center Trunnion Mounting, Center Trunnion Mounting (Adjustable)

The FMK model by Airmax Pneumatics is a premium long stroke pneumatic air cylinder designed for robust industrial operations. Available in Round Tube & Tie Rod construction, these pneumatic cylinders are engineered to deliver superior performance in demanding environments.

Double Ended

Single Acting. N/O, N/C

Double Acting.

Magnetic

Adjustable Cushioning

The FMK Model K-05 Series Pneumatic Cylinder offers 25mm to 1000mm stroke (up to 2000mm) with Buna-N, P.U., Hi-Nitrile, and optional Viton seals. It features Eye Rod, Fork, and Trunnion Mounting, making it ideal for automotive, pharmaceutical, food, textile, and packaging industries. As a trusted manufacturer and supplier of FMK pneumatic cylinders in India, we ensure reliable performance.
