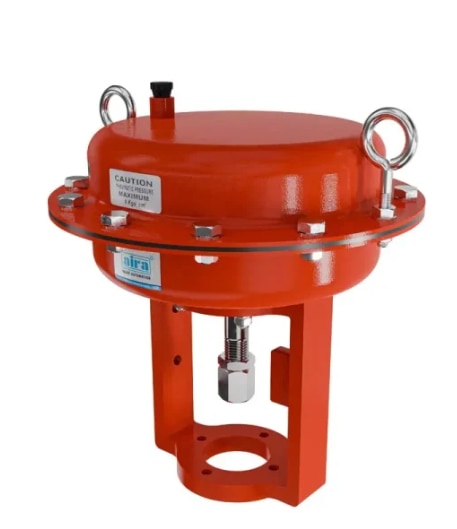

Pneumatic Linear Diaphragm Actuator
In stock
Description
Temperature Range
-20°C To 90°C
Inlet Air Supply
2.5 To 4 KG/CM²
Stem Movement
Linear
Size Range
CND-01-NX To CND-06
Actuator Action
Direct Acting / Reverse Acting
Air Fail Position
Stem Extended / Stem Retracted
1. Flexible Diaphragm: The core component that converts pneumatic pressure into motion, ensuring smooth and reliable operation.
2. Spring Return: Includes a spring mechanism that returns the actuator to a default position when pressure is removed, ensuring fail-safe operation.
3. Safety: With the ability to return to a default position during a failure, pneumatic linear diaphragm actuators help maintain system safety and prevent damage.
