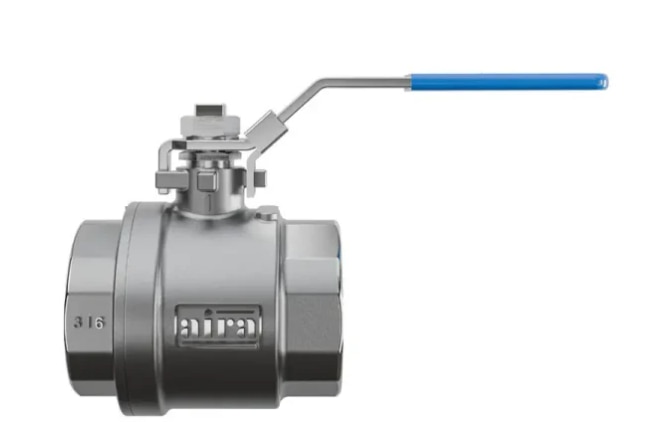

Single Piece Screwed End Ball Valve
In stock
Description
Inspection & Testing
API 598 / ISO-5208 / BS EN 12266-1
Size Range
1/4“ To 2” Screwed 150#
Media
Air / Water / Oil & Gas
Ball Material
CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M
Stem Material
Aisi 410, Ss 304, Ss 316, Ss 304l, Ss 316l, Duplex 2205, Duplex 2507, Monel
Leakage Class
ISO 5208 Class VI / FCI - 70 - 2 / ASME B 16, 16. 104 (BUBBLE TIGHT SHUTOFF)
End Connection
ISO 7-1 FOR BSPT / BSP / ASME B 1.201 FOR NPT FOR S/E ASME 16.11 FOR SOCKET WELD
Tempreature Range
PTFE : Upto 180°C / RPTFE / TFM : 220°
