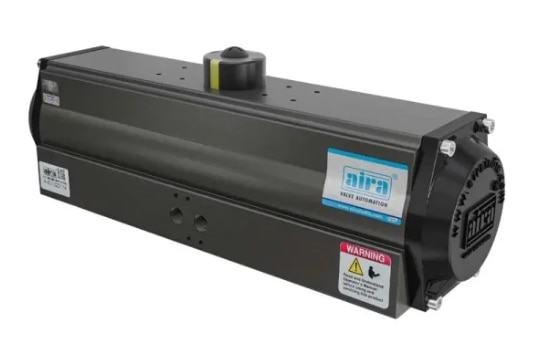

180° Rotation Double Acting Actuator

Size Range

ARA-328 To ARA-1108

Temperature Range

-20°C TO 90°C

Working Pressure

3 To 8 Bar

Method Of Transmission

Rack And Pinion Type

Actuation

Double Acting

Body

Extruded Aluminium Hard Anodized

Caps And Rack

Aluminium Pressure Die Cast

Pinion

EN 8

Seals

Nitrile

Air Pressure

Normal Air Supply Pressure: 3KG/CM², Air Supply Pressure: 8KG/CM² Max

Actuator Design

ISO 5211 (Actuator Can Be Quickly And Easily Mounting)

Rotation

180° Rotation

Torque

0 To 140 NM

Mounting PCD

As Per ISO 5211 Mounting Standard

Piston Material

Aluminium

Application

Operating For Valve

1 – Suitable typically for 3 way vales, requiring ON – OFF operation. It is available in both double acting versions.

2 – The 180° actuator can provide center off for the 3 way ball valve, bottom entry by choosing the option,of 3 position.

3 – The end stop adjustment is provided for opening and closing direction as a standard.

4 – Actuator mounting is as per ISO 5211 & Accessories to Namur Solenoid Valve.
