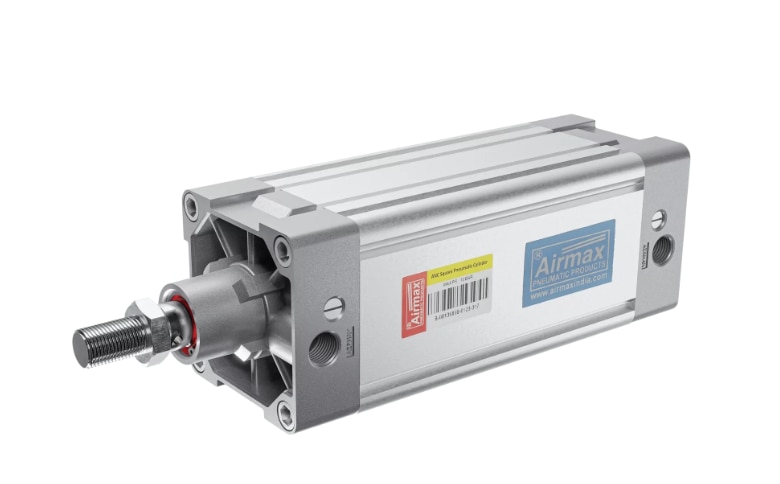

ANC Square Pneumatic Cylinder
In stock
Description
Product Details
Bore (mm) 32 l 40 l 50 l 63 l 80 l 100 l 125
Piston Rod 12 l 16 l 20 l 20 l 25 l 025 l 032
Stroke 25mm to 500mm (Up to 2000mm)
Model ANC
Seals Buna – N / Viton / P.U. / Hi-Nitrile (Viton on Request)
Pressure 0.5 ~ 10 kg/cm²
Temperature -20°C ~ 80°C Max.
Tube Aluminium Hard Anodized
End Cover Aluminium Pressure Die Cast
Mounting
Female Clevise | Wall Bracket Mounting | Eye Rod Mounting | Fork Mounting Clevis Foot Bracke | Clevis Foot Mounting | Foot Mounting | Front & Rear Trunnion Mounting | Male Clevis | Pivot Mounting | Rod End Aligner Mounting Front/Rear Flange Mounting | Wall Bracket Mounting Female & Male Clevis | Center Trunnion Mounting
Media Compressed Air - Filtered - Lubricated
