MRM Model M-50 Series

Bore (mm) 100 l 125 l 150 l 200 l 250 l 300 l 450

Piston Rod 032 l 032 l 032 l 038 l 051 l 051 l 070

Stroke 25mm to 1000 mm (Up to 2000mm)

Seals Buna – N / P.U. / Hi - Nitril (Viton on Request)

Pressure Up to 12 kg/cm²

Temperature 80°C / 100°C / 180°C Max.

Tube M.S. Tube (MS. Honed Tube with Hard Chrome Plated)

End Cover C.I.

Mounting

Rod Eye Mounting with Hexagon Nut, Rod Clevis (FORK) Mounting with Hexagon Nut & Pin, Foot Bracket Mounting, Flange Mounting, Pivot Mounting (Rear Trunnion Mounting), Front / Rear Trunnion Mounting (FIXED), Front / Rear Fixed Trunnion On Top, Center Lug Mounting, Pivot Bracket & Pin Mounting, Center Trunnion Mounting, Center Trunnion Mounting (Adjustable / New Model)

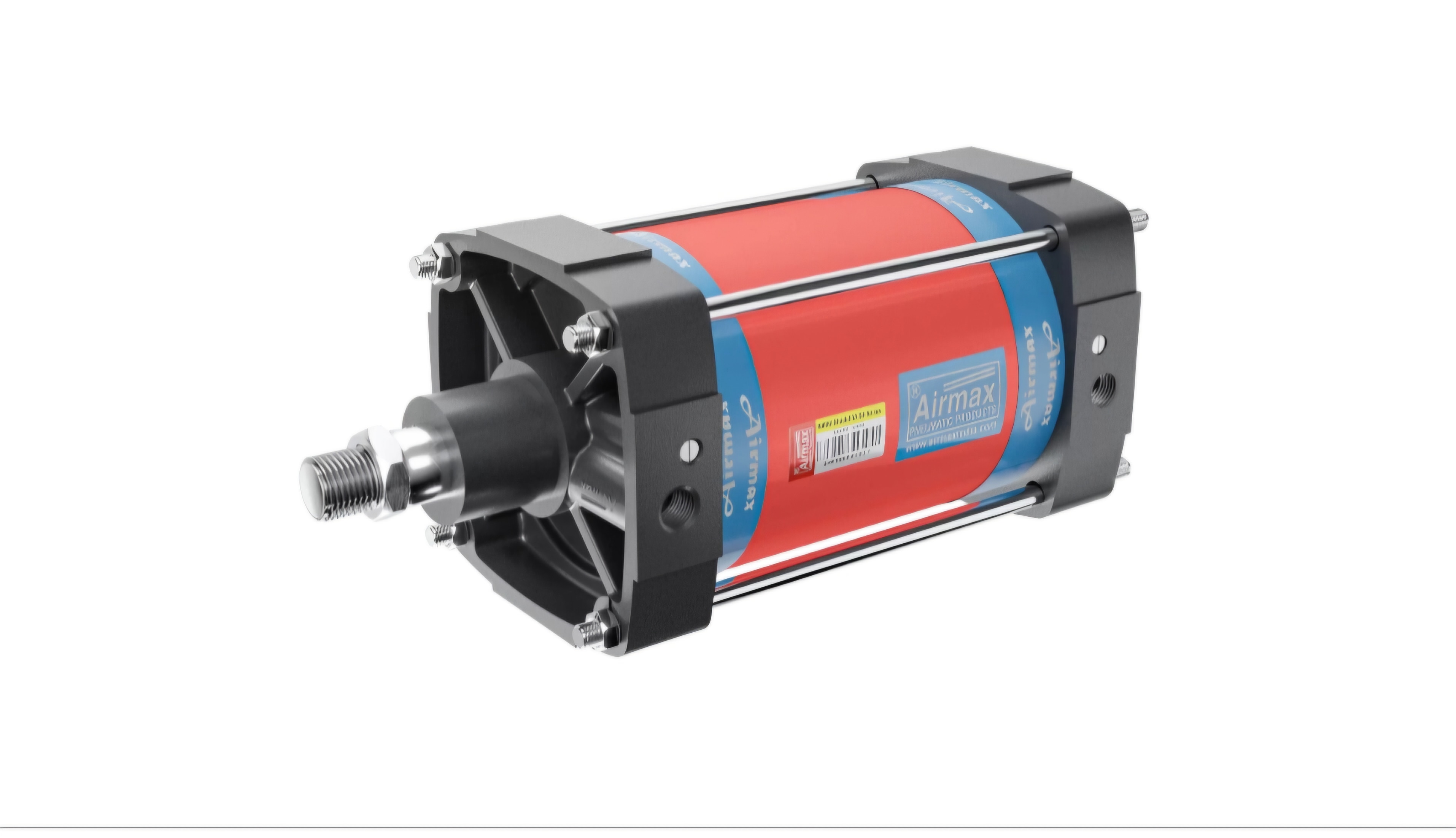

Airmax Make “MRM” Model (Steel Honed & Hard Chrome Plated Tube) Heavy Duty Pneumatic Cylinders.

Double Ended

Single Acting. N/O, N/C

Double Acting.

Magnetic

Depend on the AX 502 Model for durable, high-performance pneumatic operation.
