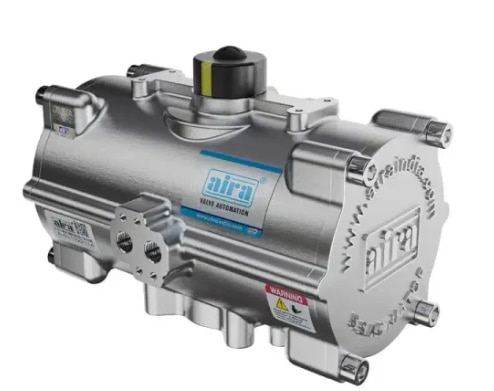

Rack And Pinion Stainless Steel Double Acting Pneumatic Actuator

Operating Temperature

Upto 150°C

Working Pressure

4 To 8 Bar

Method Of Transmission

Rack And Pinion Type

Actuation

Double Acting

Body

IC CF8/ CF8M

Caps And Rack

IC CF8/ CF8M

Pinion

S.S.304/ S.S.316

Seals

Buna - N/ Viton

Air Pressure

Normal Air Supply Pressure: 4KG/CM², Air Supply Pressure: 8KG/CM² Max

Actuator Design

ISO 5211 (Actuator Can Be Quickly And Easily Mounting)

Rotation

90° - Quarter Turn

Torque

0 To 3815 NM

Mounting PCD

ISO 5211

Body Materials

S.S - 304/ S.S - 316

Piston Materials

304/ 316

Application

Operating For Valve

1 – Excellent corrosion resistance. All main parts of actuator and it’s accessories are made from stainless steel. The body and end-caps is made by investment casting stainless steel. The CF8 (304) and CF8M (316) are available for choice. The pinion and fastening are made by 304 or 316 on requiring.Nearly 20 years experience of application proved that this kind of stainless steel pneumatic is able to offer excellent resistance to most corrosive chemicals (such as acid, alkali) as well as corrosive industry atmospheres, such as offshore, oil and gas platform, pharmaceutical and food industry.

2 – Wide scope of output torque. Totally, we have 6 different size (specifications) actuators for choice. The output torque range is from 15Nm to 3815Nm at 5 Bar. The stainless steel actuator with 3815Nm is biggest one in the World now.

3 – Smooth and long life operation. High level manufacturing technology for the rack & pinion in our workshop allows this actuator not only to cycle more than 500,000 times free from failure but also to offer exceptionally smooth actuation due to the low friction generated during rotral operations.

4 – Flexible adjustment in travel ends The two independent external travel stop bolts allow ±5°adjustment at 0°and 90° of the quarter travel.
