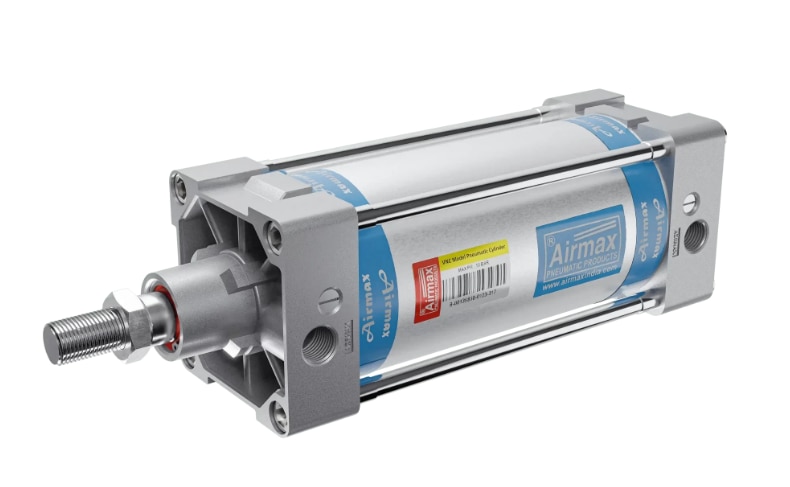

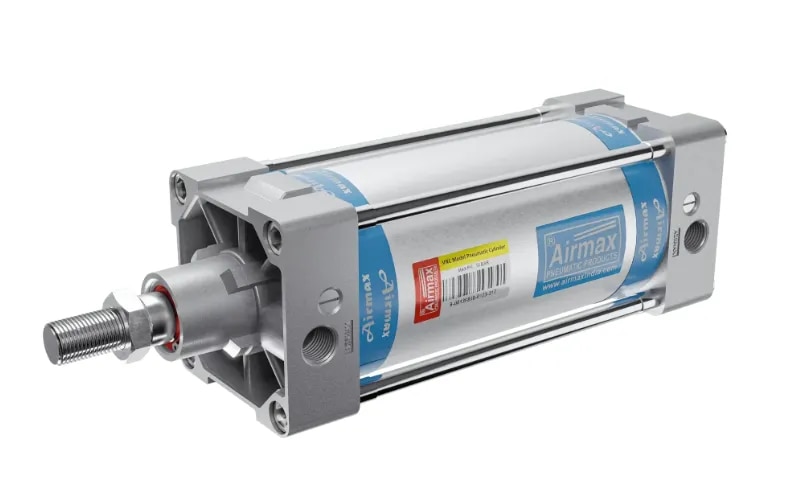

VNC Model Pneumatic Cylinder
In stock
Description
Bore (mm) 32 l 40 l 50 l 63 l 80 l 100 l 125 l 160 l 200 l 250
Piston Rod 12 l 16 l 20 l 20 l 25 l 25 l 32 l 40 l 40 l 50
Stroke 25mm to 500mm
Model VNC
Seals Buna – N / Viton / P.U. / Hi - Nitril (Viton on Request)
Pressure 0.5 ~ 10 kg/cm²
Temperature -20°~ 80°C Max.
Tube Aluminium Hard Anodized
End Cover Aluminium Pressure Die Cast
Mounting
Female Clevise, Wall Bracket Mounting, Eye Rod Mounting, Fork Mounting, Clevis Foot Bracket, Clevis Foot Mounting, Foot Mounting, Front & Rear Trunnion Mounting, Male Clevis, Pivot Mounting, Rod End Aligner Mounting, Front/Rear Flange Mounting, Wall Bracket Mounting Female & Male Clevis, Center Trunnion Mounting
