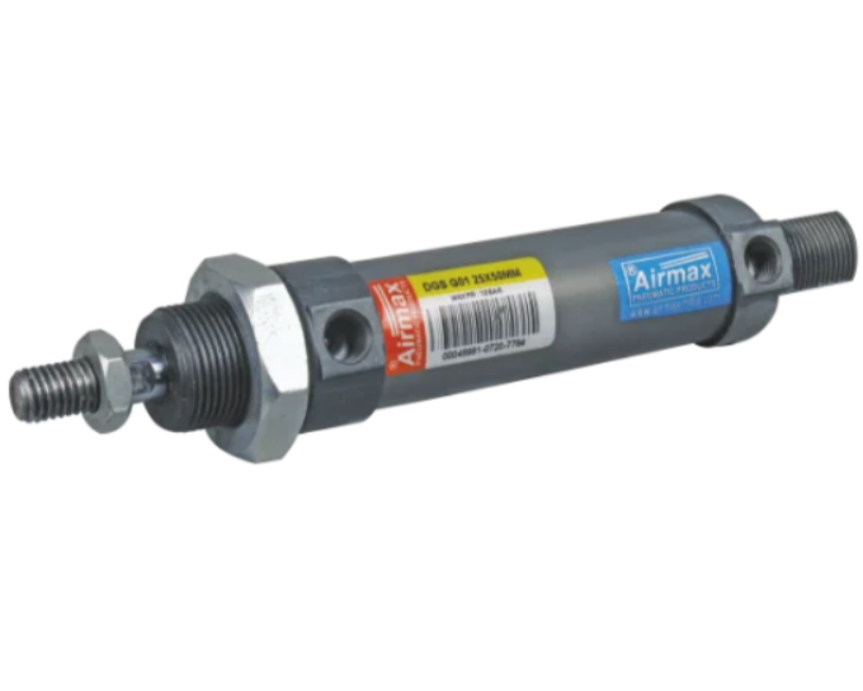

Magnetic Pneumatic Cylinder (DGS Model)

Product Overview

The Magnetic Pneumatic Cylinder (DGS Model) is a pneumatic actuator designed to convert compressed air energy into linear mechanical motion. It features a magnetic piston that enables compatible magnetic sensors to detect piston position without physical contact, making it suitable for automation systems that require position sensing and motion control.

SK Industrial Product offers Magnetic Pneumatic Cylinders in multiple bore sizes, stroke lengths, sealing materials, and mounting configurations to meet the requirements of industrial automation, pneumatic machinery, and material handling applications.

With a hard-anodized aluminium barrel and an aluminium pressure die-cast end cover, the DGS Model is designed for reliable operation in compatible industrial environments. Different seal materials and temperature options are available depending on the application requirements.

Key Features of Magnetic Pneumatic Cylinder (DGS Model)

• Magnetic piston: Supports non-contact piston position detection using compatible magnetic sensors.
• Multiple bore sizes: Available in 12 mm, 16 mm, 20 mm, and 25 mm bore options.
• Flexible stroke lengths: Stroke options ranging from 25 mm to 800 mm.
• Durable cylinder barrel: Aluminium barrel with a hard-anodized surface.
• Multiple sealing options: Buna-N, polyurethane (PU), and high-nitrile seals, with Viton available on request.
• Multiple mounting configurations: Clevis foot, eye rod, foot, fork, rod end aligner, and flange mounting options.
• Temperature options: Maximum temperature ratings of 80°C, 100°C, or 180°C, depending on the selected seal configuration and cylinder specification.
• Industrial automation compatibility: Suitable for pneumatic systems requiring controlled linear movement and position sensing.

Technical Specifications

ParameterSpecificationProduct NameMagnetic Pneumatic CylinderModelDGS ModelBore Diameter12 mm, 16 mm, 20 mm, 25 mmPiston Rod Diameter6 mm, 8 mm, 8 mm, 10 mm, respectivelyStroke Length25 mm to 800 mmSeal MaterialsBuna-N, PU, High-NitrileOptional SealViton, available on requestMaximum Temperature80°C / 100°C / 180°C, depending on configurationEnd Cover MaterialAluminium pressure die castCylinder BarrelHard-anodized aluminiumMounting OptionsClevis Foot, Eye Rod, Foot, Fork, Rod End Aligner, FlangePosition DetectionCompatible magnetic sensor, selected separately as required

Note: Confirm the temperature rating, seal material, sensor compatibility, and other operating limits for the specific configuration before ordering.

Applications of Magnetic Pneumatic Cylinder

The DGS Model Magnetic Pneumatic Cylinder can be used in a variety of industrial applications, including:

• Industrial automation and pneumatic control systems
• Packaging and filling machinery
• Pick-and-place equipment
• Material handling systems
• Assembly and production lines
• Machine tools and special-purpose machinery
• Pneumatic clamping and positioning systems
• Equipment requiring magnetic piston position detection

Application suitability depends on the required force, operating pressure, stroke, mounting arrangement, speed, and environmental conditions.

Why Choose a Magnetic Pneumatic Cylinder?

A magnetic pneumatic cylinder provides linear motion using compressed air while allowing piston position to be detected by compatible magnetic sensors. This can simplify position feedback in automated machinery and reduce the need for mechanical contact switches.

The DGS Model offers a choice of bore diameters, stroke lengths, seal materials, and mounting configurations, allowing engineers and machine builders to select a suitable cylinder for their pneumatic application.

For correct cylinder selection, consider the required operating pressure, thrust force, stroke length, cycle speed, temperature, mounting style, and sensor requirements.

Available Mounting Options

The Magnetic Pneumatic Cylinder (DGS Model) supports several mounting arrangements:

• Clevis Foot Mounting: For applications requiring a pivoting or articulated mounting arrangement.
• Eye Rod Mounting: For compatible rod-end connections that permit angular movement.
• Foot Mounting: For securing the cylinder body to a machine frame or support.
• Fork Mounting: For applications requiring a fork-style mechanical connection.
• Rod End Aligner Mounting: For compatible rod-end alignment and connection requirements.
• Flange Mounting: For applications requiring a flange-based cylinder installation; confirm flange dimensions and mounting bolt details.

Choose the mounting arrangement according to the machine layout, load direction, and movement requirements.

Frequently Asked Questions (FAQs)

1. What is a Magnetic Pneumatic Cylinder?

A Magnetic Pneumatic Cylinder is a compressed-air-powered actuator with a magnetic piston. It produces linear motion and allows compatible magnetic sensors to detect the piston position without direct physical contact.

2. What is the DGS Model Magnetic Pneumatic Cylinder used for?

The DGS Model is used in industrial automation, packaging machinery, material handling, pneumatic clamping, assembly equipment, and other applications requiring controlled linear movement and piston position sensing.

3. What bore sizes are available in the DGS Model?

The DGS Model Magnetic Pneumatic Cylinder is available in bore sizes of 12 mm, 16 mm, 20 mm, and 25 mm.

4. What stroke lengths are available?

The specified stroke range is 25 mm to 800 mm. Availability should be confirmed for the required bore size and mounting configuration.

5. Which piston rod diameters are available?

The listed piston rod diameters are 6 mm for the 12 mm bore, 8 mm for the 16 mm and 20 mm bores, and 10 mm for the 25 mm bore.

6. Which sealing materials are available?

The specified seal options include Buna-N, polyurethane (PU), and high-nitrile materials. Viton seals are available on request, subject to configuration and operating requirements.

7. What is the maximum operating temperature?

The listed maximum temperature options are 80°C, 100°C, and 180°C. The applicable limit depends on the selected seals and cylinder configuration. Confirm the approved rating before use.

8. What material is used for the cylinder barrel?

The cylinder barrel is made of hard-anodized aluminium, as specified for the DGS Model.

9. Can the piston position be detected automatically?

Yes. A compatible magnetic sensor can detect the magnetic piston position. Sensor compatibility, mounting style, and switching requirements should be confirmed before purchase.

10. Which mounting options are available?

The listed mounting options are clevis foot, eye rod, foot, fork, rod end aligner, and flange mounting.

11. How do I select the correct Magnetic Pneumatic Cylinder?

Select the cylinder based on bore diameter, stroke length, operating pressure, required thrust force, mounting style, operating temperature, seal material, and sensor requirements. Check that the cylinder is suitable for the load and duty cycle.

12. Where can I enquire about a DGS Model Magnetic Pneumatic Cylinder?

You can contact SK Industrial Product through the contact details available on its website to enquire about the required bore size, stroke length, mounting option, seal material, and availability.

Enquire About Magnetic Pneumatic Cylinder (DGS Model)

Looking for a Magnetic Pneumatic Cylinder for your industrial automation or pneumatic machinery requirements? Contact SK Industrial Product with your required bore size, stroke length, mounting arrangement, and operating conditions to confirm the appropriate configuration.
