Airmax FRL Pressure Gauge – Model JHFRCLM

S K Industrial Products – Pneumatic Products, FRL Units & Industrial Automation Solutions

Looking for a reliable Airmax FRL Pressure Gauge for your industrial pneumatic system? S K Industrial Products offers the Airmax FRL Unit, Model JHFRCLM, for applications requiring compressed air filtration, pressure regulation, and lubrication.

Designed for industrial pneumatic applications, this FRL assembly combines a Filter, Regulator, and Lubricator in one unit. Its integrated pressure gauge allows operators to monitor air pressure conveniently, helping maintain consistent pneumatic system performance.

Based in Ajmeri Gate, Delhi, S K Industrial Products supplies pneumatic products and industrial automation components to customers in Delhi and across India. Contact us for product availability, size options, pricing, and technical assistance.

What Is an Airmax FRL Unit?

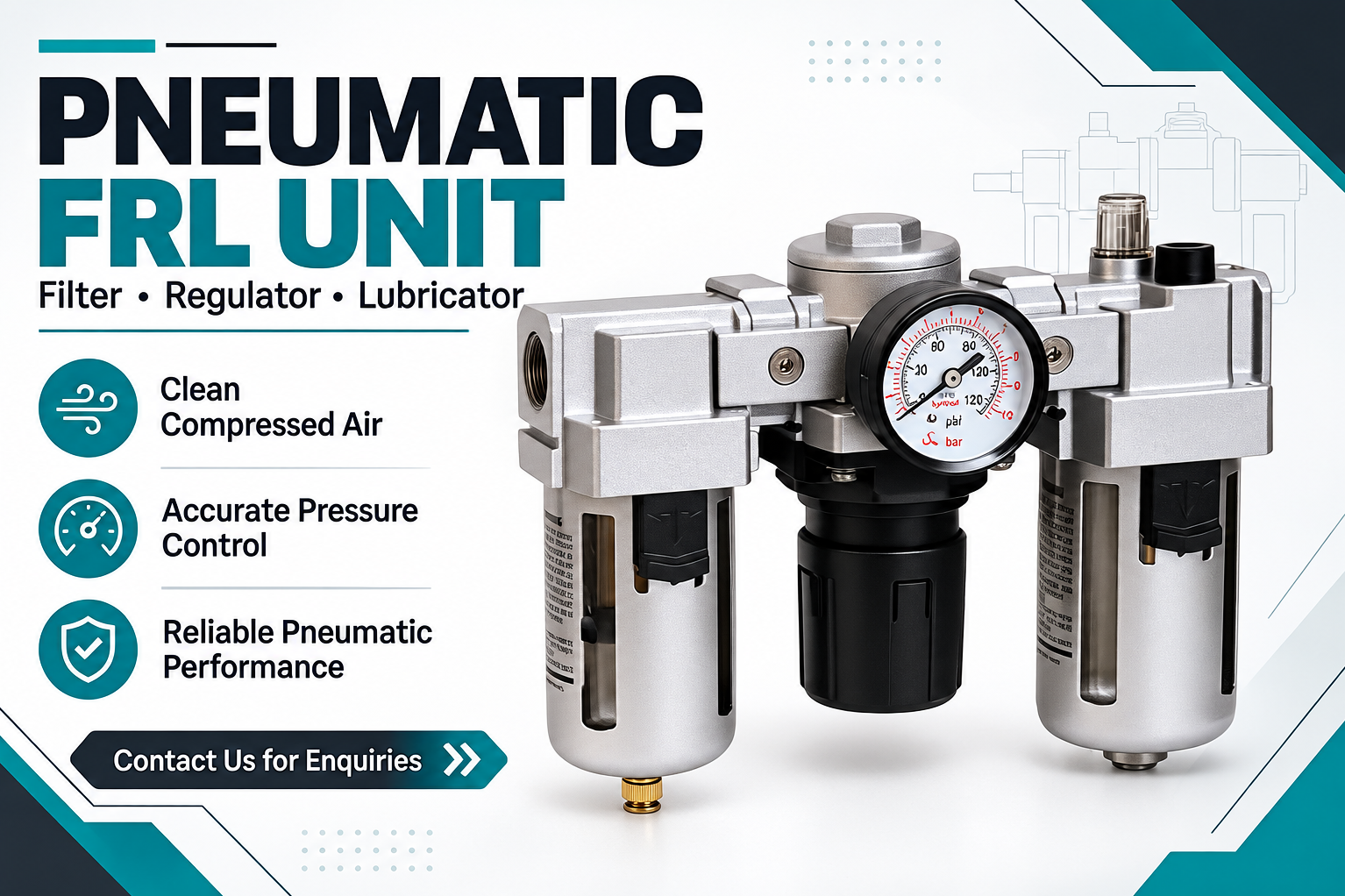

An FRL unit is an air preparation assembly used in pneumatic systems to filter compressed air, regulate operating pressure, and supply lubrication where required.

The Airmax JHFRCLM FRL set combines three essential functions:

• Filter (F): Helps remove contaminants and moisture from compressed air, depending on the filter configuration and operating conditions.
•

• Regulator (R): Helps control downstream air pressure to suit the requirements of pneumatic equipment.
•

• Lubricator (L): Introduces a controlled oil mist into the compressed air when lubrication is required by the connected equipment.
•

• Pressure Gauge: Provides a convenient visual indication of regulated air pressure.

Together, these components help support reliable operation and maintenance of compatible pneumatic machinery.

Airmax JHFRCLM FRL Unit – Technical Specifications

SpecificationDetailsBrandAirmaxProduct Name FRL Pressure GaugeModelJHFRCLMProduct CategoryPneumatic FRL UnitAvailable Sizes1/4', 3/8', 1/2', 3/4', 1'Body MaterialAluminium Pressure Die CastSeal MaterialNBRMaximum Pressure (as specified)10 kg/cm²Maximum Temperature (as specified)50°CWorking MediaCompressed AirPressure MonitoringIntegrated Pressure GaugeLubrication OilISO VG32 oil, subject to manufacturer recommendationsSupplierS K Industrial ProductsLocationAjmeri Gate, Delhi, India

Technical note: Confirm the allowable inlet pressure, operating temperature, port size, flow capacity, and oil compatibility against the manufacturer's datasheet before installation.

Key Features and Benefits of the Airmax FRL Set

1. Three-in-One Air Preparation

Combines filtration, pressure regulation, and lubrication in a single assembly to simplify pneumatic air preparation.

2. Convenient Pressure Monitoring

The integrated pressure gauge helps operators check regulated air pressure during routine operation.

3. Multiple Connection Sizes

Available in 1/4', 3/8', 1/2', 3/4', and 1' sizes, subject to product availability, to suit different pneumatic system requirements.

4. Aluminium Die-Cast Body

The aluminium pressure die-cast body provides a rigid housing for industrial compressed-air applications.

5. NBR Seals

NBR seals are specified for sealing performance in compatible pneumatic operating conditions.

6. Support for Lubricated Pneumatic Equipment

The lubricator can supply oil mist to compatible equipment that requires lubricated compressed air. Always follow the equipment manufacturer's lubrication requirements.

Applications of Airmax Pneumatic FRL Units

The Airmax JHFRCLM FRL unit may be suitable for compatible pneumatic systems used in:

• Industrial automation equipment
•

• Pneumatic cylinders and actuators
•

• Pneumatic control valves
•

• Manufacturing and assembly machinery
•

• Packaging machinery
•

• Workshop pneumatic systems
•

• Material-handling equipment
•

• Industrial production lines

Important: Some modern pneumatic components require oil-free compressed air. Check the equipment manufacturer's requirements before installing a lubricator.

Why Contact S K Industrial Products?

S K Industrial Products supplies pneumatic products and industrial automation components for industrial buyers, maintenance teams, machine manufacturers, and system integrators.

When enquiring about an Airmax FRL unit, our team can assist with:

• Product identification and model confirmation
•

• Selection of suitable connection sizes
•

• Price and availability enquiries
•

• Pneumatic product sourcing
•

• Assistance with related pneumatic components

Contact us to discuss your application and identify a suitable FRL configuration.

Frequently Asked Questions (FAQs)

1. What is an Airmax F + R + L Set?

An Airmax F + R + L set is a three-piece pneumatic air preparation assembly comprising a Filter, Regulator, and Lubricator. It is used to prepare compressed air for compatible pneumatic equipment.

2. What is the model number of the Airmax 3-piece FRL unit?

The model number specified for this product is JHFRCLM.

3. What sizes are available for the Airmax JHFRCLM FRL unit?

The listed sizes are 1/4', 3/8', 1/2', 3/4', and 1'. Confirm the required size and availability before ordering.

4. What is the maximum pressure rating of the Airmax JHFRCLM?

The supplied product specifications state a pressure rating of 10 kg/cm². Confirm the manufacturer's datasheet to establish the exact allowable operating pressure and applicable test conditions.

5. What is the maximum operating temperature?

The supplied specifications list 50°C. Verify the manufacturer's documentation for the applicable operating conditions.

6. What material is used for the FRL body?

The specified body material is aluminium pressure die cast.

7. What type of seals does this FRL unit use?

The supplied specifications identify NBR seals. Suitability depends on the operating conditions and the media contacting the seals.

8. Why does an FRL unit have a pressure gauge?

The pressure gauge provides a visual indication of regulated air pressure, helping operators monitor pneumatic system settings.

9. Which oil is suitable for the lubricator?

The supplied product description identifies ISO VG32 oil. Confirm the recommended lubricant and oiling requirements with Airmax and the connected pneumatic equipment manufacturer.

10. Can an FRL unit be used with pneumatic cylinders and solenoid valves?

It can be used in compatible pneumatic systems containing cylinders and solenoid valves. Correct sizing, pressure settings, air quality, and lubrication requirements must be checked for the specific equipment.

11. What is the difference between a 2-piece FRL and a 3-piece FRL?

A typical 2-piece FRL assembly combines filtration and pressure regulation. A 3-piece FRL assembly adds a lubricator. The correct choice depends on whether the connected pneumatic equipment requires lubricated compressed air.

12. Where can I enquire about the Airmax JHFRCLM FRL unit in Delhi?

You can contact S K Industrial Products, Ajmeri Gate, Delhi, for enquiries about the Airmax JHFRCLM FRL unit, available sizes, pricing, and product availability.

13. Does S K Industrial Products supply pneumatic products across India?

S K Industrial Products caters to industrial product enquiries from customers in Delhi and across India. Contact us to confirm product availability and delivery arrangements for your location.

14. How do I select the correct FRL unit size?

Consider the pipe connection size, required airflow, inlet pressure, downstream pressure, equipment specifications, and installation requirements. Consult the manufacturer's technical data when selecting an FRL unit.
