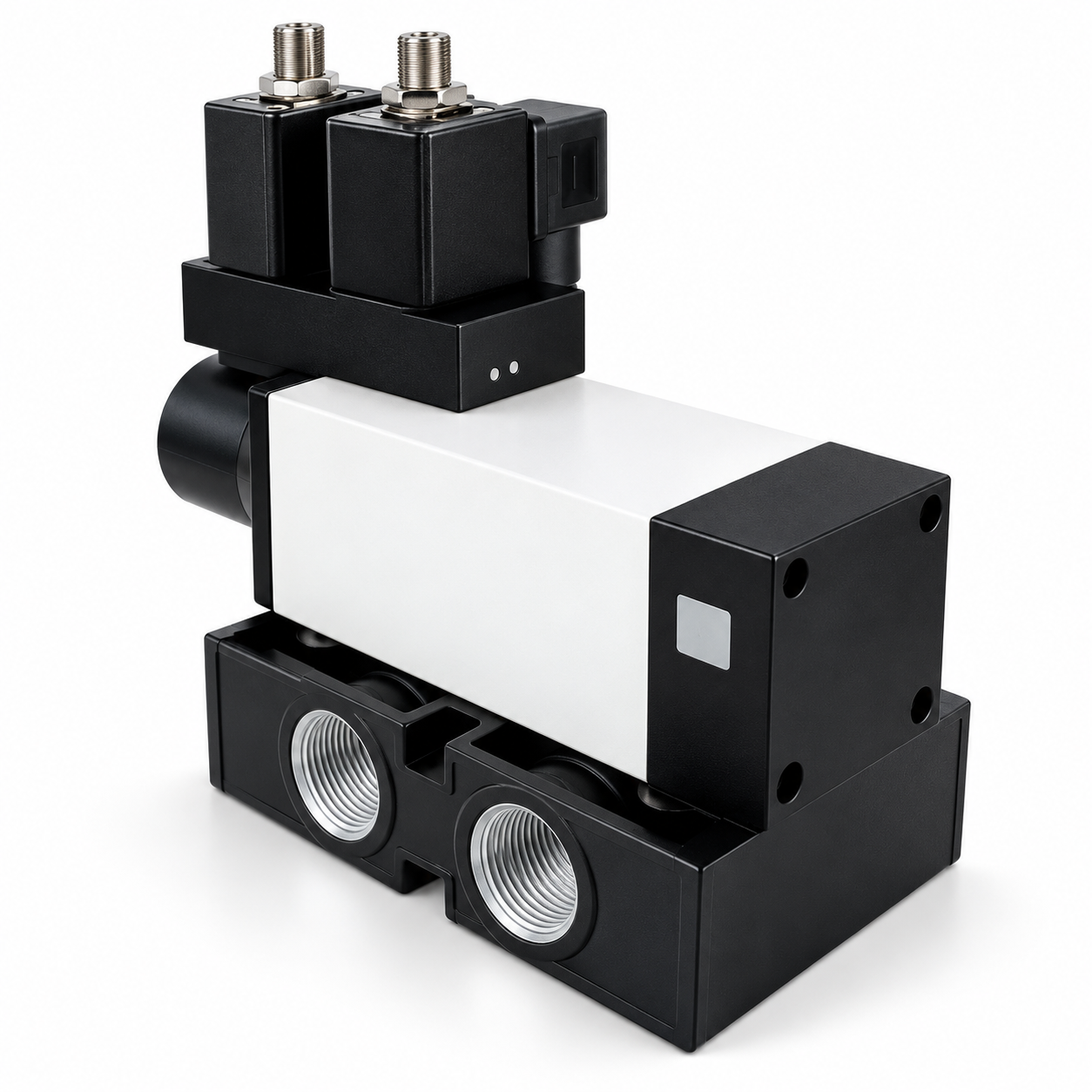

Airmax 5/2 Way Poppet Type Single Solenoid Valve – PPTS-52 / PPT-52
S K Industrial Products | Pneumatic Valves & Industrial Automation Products in Delhi, India
Looking for an Airmax 5/2 Way Poppet Type Single Solenoid Valve for your industrial automation system? S K Industrial Products offers enquiries for Airmax pneumatic directional control valves designed to control compressed-air flow in compatible pneumatic applications.
The Airmax PPTS-52 and PPT-52 series features a poppet-type design, an aluminium pressure die-cast body, nitrile seals, and multiple port-size and coil-voltage options. These valves are commonly selected for pneumatic cylinder control, industrial automation machinery, and compressed-air control systems.
Located in Ajmeri Gate, Delhi, S K Industrial Products supplies pneumatic products, industrial valves, and automation components to customers in Delhi and across India.
Contact us for product availability, pricing, technical specifications, and assistance in selecting the right valve for your application.
Airmax 5/2 Way Solenoid Valve – Technical Specifications
Specification
Details
Brand
Airmax
Product Name
5/2 Way Poppet Type Single Solenoid Valve
Model Numbers
PPTS-52, PPT-52
Valve Type
Poppet-Type Directional Control Valve
Actuation
Single Solenoid
Valve Configuration
5 Ports, 2 Positions
Basic Sizes
3/8' and 3/4'
Port Sizes – 3/8' Basic
1/4', 3/8', 1/2'
Port Sizes – 3/4' Basic
1/2', 3/4', 1'
Body Material
Aluminium Pressure Die Cast
Seal Material
Nitrile
Operating Pressure
2.5–10 kg/cm²
Specified Temperature
80°C
Leakage Specification
Bubble Tight
Working Media
Filtered and Lubricated Compressed Air
Coil Voltage Options
12V, 24V, 48V, 110V, 230V
Coil Supply
AC/DC options; confirm the exact variant
Supplier
S K Industrial Products
Location
Ajmeri Gate, Delhi, India
Technical note: Confirm the exact model, connection size, coil voltage, AC/DC configuration, and allowable operating conditions against the manufacturer's datasheet before ordering.
What Is a 5/2 Way Poppet Type Single Solenoid Valve?
A 5/2 way pneumatic solenoid valve is a directional control valve with five ports and two switching positions. It directs compressed air between the supply, actuator connections, and exhaust ports.
A single-solenoid valve uses an electrically energized coil to switch the valve. Depending on its design, it returns to its normal position when the electrical signal is removed.
The Airmax PPTS-52 / PPT-52 series is designed for compatible pneumatic control applications where electrically operated directional control is required.
Key Features and Benefits
1. Efficient Pneumatic Directional Control
The 5/2 way configuration is commonly used to control double-acting pneumatic cylinders and other compatible actuators.
2. Single-Solenoid Actuation
Supports electrical switching through compatible control systems, PLC outputs, or suitable control circuits.
3. Aluminium Die-Cast Body
The aluminium pressure die-cast body provides a rigid housing for industrial pneumatic applications within the specified operating limits.
4. Nitrile Seals
Nitrile sealing components provide sealing performance under compatible operating pressure, temperature, and media conditions.
5. Multiple Port-Size Options
Several basic and connection sizes are listed, helping users select a valve suited to their pneumatic installation requirements.
6. Multiple Coil Voltage Options
Listed coil voltage options include 12V, 24V, 48V, 110V, and 230V. The correct AC or DC variant must be confirmed before installation.
7. Bubble-Tight Leakage Specification
The supplied product specifications describe the valve as bubble tight. Confirm the manufacturer's test conditions and leakage criteria for applications where leakage performance is critical.
Applications of Airmax Pneumatic Solenoid Valves
The Airmax 5/2 way poppet-type single solenoid valve may be suitable for compatible equipment used in:
Industrial automation systems
Double-acting pneumatic cylinder control
Manufacturing and assembly machinery
Packaging machines
Material-handling systems
Pneumatic clamping equipment
Machine tools
Automated production lines
PLC-controlled pneumatic systems
Selection tip: Choose the valve based on required airflow, operating pressure, port size, electrical supply, actuator requirements, and the machine's control logic.
How to Choose the Right Airmax 5/2 Way Solenoid Valve
Before ordering an Airmax PPTS-52 or PPT-52 valve, check the following:
Model number: Confirm the required model with the manufacturer or supplier.
Port size: Select the correct basic size and connection size.
Operating pressure: Ensure your system operates within the specified 2.5–10 kg/cm² range.
Coil voltage: Select the required 12V, 24V, 48V, 110V, or 230V version.
Electrical supply: Verify whether the coil requires AC or DC and confirm any applicable frequency and current requirements.
Air preparation: Follow the manufacturer's requirements for filtration and lubrication.
Actuator compatibility: Check flow capacity, switching function, and cylinder requirements.
Why Choose S K Industrial Products?
S K Industrial Products supplies pneumatic products, industrial valves, and automation components for industrial customers, maintenance professionals, machine manufacturers, and system integrators.
Contact us for:
Airmax pneumatic solenoid valve enquiries
Product model and port-size identification
Coil voltage selection assistance
Pricing and availability enquiries
Pneumatic cylinders and directional control valves
Industrial automation component sourcing
Our team can help you identify a suitable product configuration according to your application requirements.
Frequently Asked Questions (FAQs)
1. What is the Airmax 5/2 Way Poppet Type Single Solenoid Valve?
It is a pneumatic directional control valve that uses a solenoid coil to switch compressed-air flow through five ports and two switching positions.
2. What are the model numbers of this Airmax solenoid valve?
The supplied model numbers are PPTS-52 and PPT-52.
3. What does 5/2 way mean?
The term 5/2 means the valve has five ports and two switching positions. This configuration is commonly used for controlling double-acting pneumatic cylinders.
4. What is the operating pressure range?
The supplied specifications list an operating pressure range of 2.5 to 10 kg/cm². Confirm the permissible operating conditions in the manufacturer's datasheet.
5. Which coil voltages are available?
The listed options are 12V, 24V, 48V, 110V, and 230V. Confirm the exact AC or DC coil variant before purchasing.
6. What is the body material?
The valve body is specified as aluminium pressure die cast.
7. What type of seals are used?
The supplied specifications identify nitrile seals.
8. What is the specified operating temperature?
The product information specifies a temperature of 80°C. Confirm the applicable operating-temperature limits with the manufacturer.
9. What type of compressed air does this valve require?
The supplied specifications identify filtered and lubricated compressed air. Follow the manufacturer's air preparation and lubrication recommendations.
10. What does bubble-tight leakage mean?
Bubble-tight describes a stringent leakage specification under defined test conditions. The applicable test method and acceptance criteria should be confirmed with the manufacturer.
11. Can this valve operate a pneumatic cylinder?
Yes, a compatible 5/2 way directional control valve is commonly used with a double-acting pneumatic cylinder. Verify the valve's flow capacity, pressure rating, port size, and actuation requirements.
12. Can this valve be controlled using a PLC?
A compatible PLC output can operate the solenoid coil if its voltage and current ratings match the coil requirements. An appropriate interface or driver may be required.
13. How do I choose between PPTS-52 and PPT-52?
Confirm the model designation and technical specifications with the manufacturer or supplier. Check port size, mounting arrangement, coil configuration, and operating requirements rather than assuming the models are interchangeable.
14. Where can I enquire about Airmax solenoid valves in Delhi?
You can contact S K Industrial Products in Ajmeri Gate, Delhi, for product enquiries, pricing, availability, and assistance identifying a suitable pneumatic valve.
15. Does S K Industrial Products serve customers across India?
S K Industrial Products accepts product enquiries from customers in Delhi and across India. Contact the company to confirm availability, dispatch, and delivery arrangements.
Contact S K Industrial Products for Airmax Solenoid Valves
Looking for an Airmax PPTS-52 or PPT-52 5/2 way poppet-type single solenoid valve?
Contact S K Industrial Products for product details, pricing enquiries, availability, and assistance selecting pneumatic components for your application.
S K Industrial Products
Pneumatic Products | Industrial Valves | Automation Components
Address: 158G, 1st Floor, Manohar Mansion, Ajmeri Gate, Delhi – 110006, India
Landmark: Opposite Gali Shahtara
Email: skipvijay@gmail.com
Contact us for your industrial pneumatic valve requirements.
