Tripple Offset Wafer Type Butterfly Valve

Design & Manufacturer

API 609 Category “B”/ BS EN 593

Valve Face To Face Dimension

API 609/ BS EN 558

Flange Standard Conformity

ANSI B16.5, 16.47 150#/ 300#/ 600#

Inspection & Testing

FCI-70-2/ B16,104/ ISO 5208/ BS EN 12266-1

Pressure Temperature Rating

ASME B 16.

Top Mounting

ISO 5211

Stem Square Drive

ISO 5211

Seat Leakage Class

IV/ V/ VI

Top Flange Drilling

ASME B16.5/ 16.47 Class 150.

End Connection

Wafer Type- D/F- AWWA C 504 D/F - IS 13095 - 150# 300# 600# PN-10 PN-16 PN-20 PN-25 PN-40

Size Range

1.1/2“ To 48” (Above 48" On Request) (40 MM To 1200 MM)

Tempreature Range

Upto 400°C

Pressure Class

150#, 300#, 600# PN-10 PN-16 PN-20 PN-25 PN-40

Media

Water, Oil, Steam, Air, Gas Chemical & Vaccum.

Leakage Class

Class VI As Per ANSI B16.104

Body Material

CI, DI, S.G.I, WCB, CF8, CF8M, CA15, WCC, LCB, WC6, WC9, WC12, HAST ALLOY C, NICKEL ALUMINIUM BRONZE, DUPLEX 4A, 5A, 6D, SUPER DUPLEX, ALLOY 20

Disc Material

CI, DI, S.G.I, WCB, CF8, CF8M, CA15, WCC, LCB, WC6, WC9, WC12, HAST ALLOY C, NICKEL ALUMINIUM BRONZE, DUPLEX 4A, 5A, 6D, SUPER DUPLEX, ALLOY 20

Seat Material

SS 304, SS 304L, SS 316, SS 316L, SS 304 + STALLITE 6, SS 316 + STALLITE 6, SS 316 + STALLITE 21, SS 316 + STALLITE 21, INCONEL, DUPLEX 4A, DUPLEX 5A

Inspection & Testing

API 598/ BSEN 12266-1/ AWWA C 504/ AWWA C 516/ IS 13095

Certifiaction

Design Ce Approved, SIL3 Approved, EIL Approved

Features & Benefits

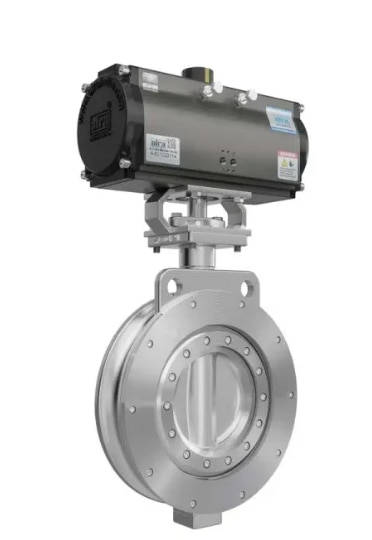

The aira Triple Offset Wafer Type Butterfly Valve is designed for precise control and durability in demanding applications.

1 – Triple Offset Design: Provides superior sealing performance and reduces torque requirements, ensuring tight shut-off and longevity.

2 – Wafer Style: Compact and easy to install between flanges, saving space and simplifying maintenance.

3 – High-Quality Materials: Constructed from robust materials to withstand harsh environments and high pressures.

4 – Leak-proof Sealing: Enhanced sealing capability reduces the risk of leakage and enhances operational reliability.

5 – Versatile Applications: Ideal for use in various industries including water treatment, chemical processing, and power generation.
