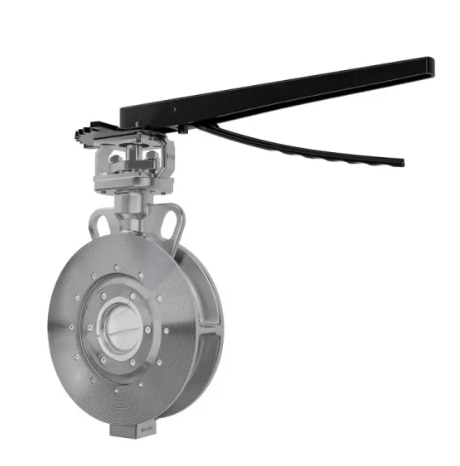

WKT Tripple Offset Wafer Type Butterfly Valve

Size Range

2.1/2“ To 48” (65MM To 1200MM)

Tempreature Range

Upto 220°C

Pressurre Class

PN 16

Shutoff Rating

Tight Shut Off

Body Style

Wafer Type

Flange Drilling

150#, 300#, AWWA, Series-A, Series-B, EN 1092-1, EN 1092-2

Body Materials

WCB, CF8, CF8M, CF3M, DUPLEX, ALLOY - 20

Stem Materials

SS 304 / 316 / 410 / 17-4 PH / 316LSS 304 / 316 / 410 / 17-4 PH / 316L

Seat Materials

EPDM, EPDM - H, VITON

Disc Materials

WCB, CF8, CF8M, CF3M, DUPLEX ALLOY - 20

Design Standard

BSEN 593, ISI 3095, API 609, AWWA C - 504

Testing Standard

API 598 / BSEN - 12266-1 / AWWA C - 504

Face To Face

API - 609 / BSEN 558 / AWWA C - 504 / 516

Features & Benefits

1 – Triple Offset Design: Enhances sealing performance and extends valve life by reducing friction and wear.

2 – Precision Engineering: Provides a tight, reliable shutoff, even under high pressure and temperature conditions.

3 – Wafer Type Construction: Simplifies installation between flanges, offering space-saving and flexibility.

4 – Durable Materials: Built to withstand harsh industrial environments and ensure long-term reliability.

5 – Versatile Application: Suitable for a wide range of fluids, including water, chemicals, and gases.

6 – Low Maintenance: Designed for minimal upkeep and dependable operation over time.
