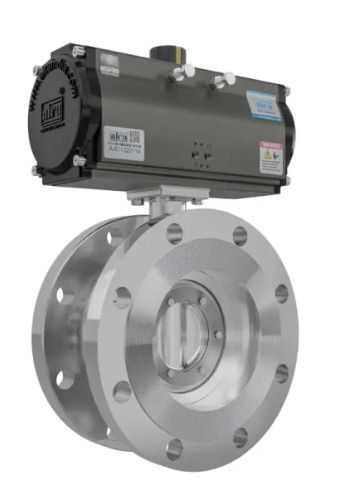

WKT Tripple Offset Double Flanged Butterfly Valve

Size Range

2.1/2“ To 48” (65MM To 1200MM)

Tempreature Range

Upto 220°C

Shutoff Rating

Tight Shut Off

Body Style

Double Flanged

Flange Drilling

150#, 300#, AWWA, Series-A, Series-B, EN 1092-1, EN 1092-2

Body Materials

WCB, CF8, CF8M, CF3M, DUPLEX, ALLOY - 20

Stem Materials

SS 304 / 316 / 410 / 17-4 PH / 316L

Seat Materials

EPDM, EPDM - H, VITON

Disc Materials

WCB, CF8, CF8M, CF3M, DUPLEX ALLOY - 20

Design Standard

BSEN 593, ISI 3095, API 609, AWWA C - 504

Testing Standard

API 598 / BSEN - 12266-1 / AWWA C - 504

Face To Face

API - 609 / BSEN 558 / AWWA C - 504 / 516

Features & Benefits

1 – Triple Offset Design: Provides exceptional sealing and reduces friction, enhancing valve performance and longevity.

2 – Double Flanged Construction: Ensures secure, stable installation and precise alignment in piping systems.

3 – High-Performance Sealing: Delivers reliable shutoff even under high pressure and temperature conditions.

4 – Durable Materials: Built to withstand harsh environments and demanding applications.

5 – Versatile Use: Suitable for a range of fluids, including water, chemicals, and gases.

6 – Low Maintenance: Designed for minimal upkeep, offering dependable long-term operation.
