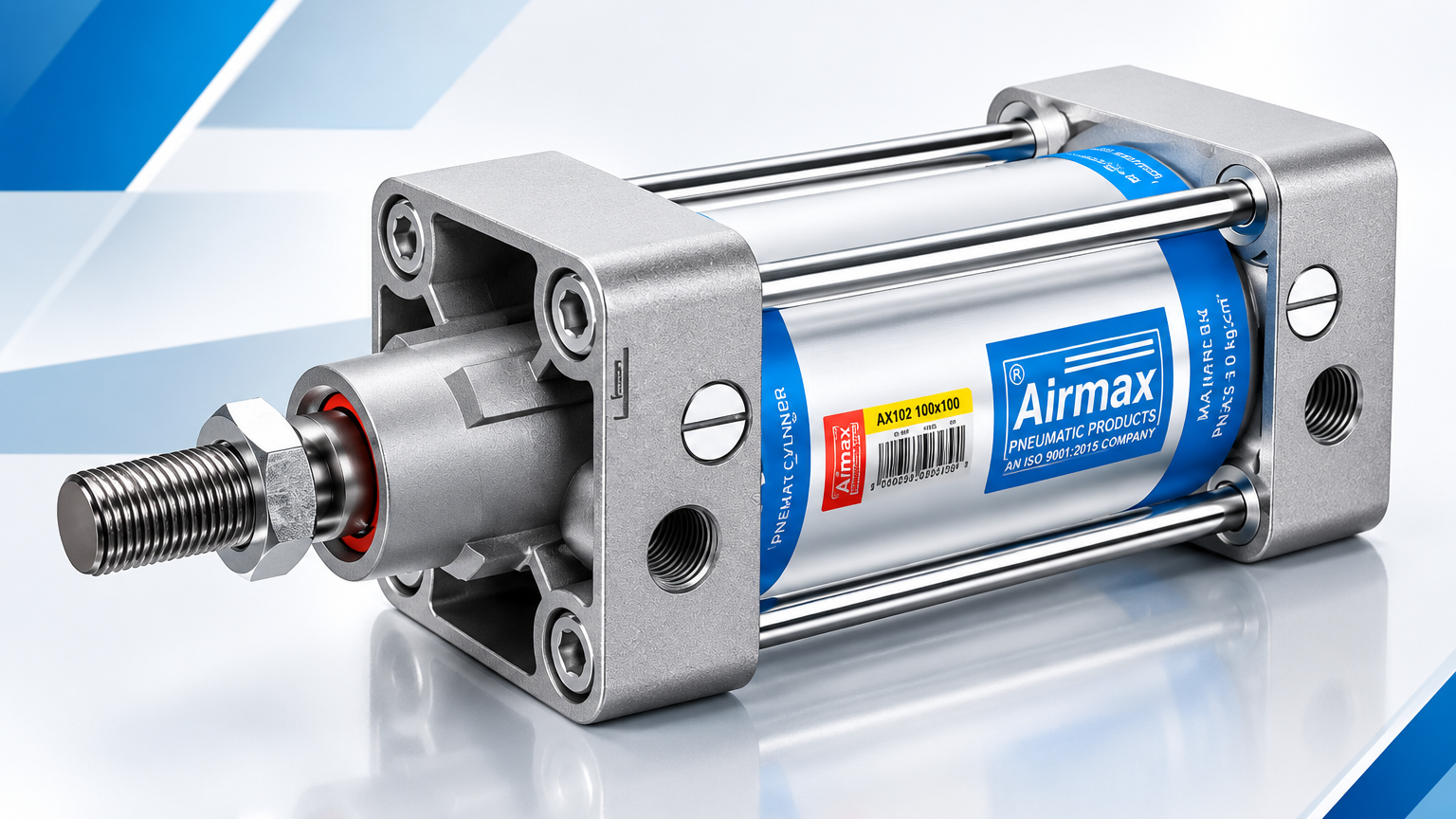

Airmax Round Body Pneumatic Air Cylinder AX102
Pneumatic Cylinders | Industrial Automation | Pneumatic Products Supplier in Delhi, India
Looking for a reliable Airmax Round Body Pneumatic Air Cylinder AX102 for your industrial automation or compressed-air application? S K Industrial Products offers enquiries for Airmax pneumatic cylinders designed to provide linear motion in compatible industrial machinery and pneumatic systems.
The Airmax AX102 Round Body Pneumatic Air Cylinder is available in multiple bore sizes, different stroke lengths, and a wide range of mounting configurations. It is suitable for applications requiring controlled linear movement, clamping, pushing, pulling, positioning, and material handling.
At S K Industrial Products, located in Ajmeri Gate, Delhi, we supply pneumatic products, industrial valves, cylinders, and automation components to customers in Delhi and across India.
Contact us for product availability, pricing, bore size selection, stroke requirements, and mounting options for your application.
Airmax AX102 Pneumatic Cylinder – Technical Specifications
Specification
Details
Brand
Airmax
Product Name
Round Body Pneumatic Air Cylinder
Model
AX102
Product Category
Pneumatic Cylinder
Bore Sizes
32, 40, 50, 63, 80, 100, 125 mm
Piston Rod Diameters
12, 16, 20, 20, 25, 25, 32 mm, respectively
Stroke Length
25 mm to 1000 mm; up to 2000 mm as specified
Operating Pressure
0.5–10 kg/cm²
Specified Temperature
80°C
Working Medium
Filtered and lubricated compressed air
Mounting Options
Female Clevis, Wall Bracket, Eye Rod, Fork, Clevis Foot Bracket, Clevis Foot, Foot Mounting, Front and Rear Trunnion, Male Clevis, Pivot, Rod End Aligner, Front and Rear Flange, Female and Male Clevis Wall Bracket, Centre Trunnion
Supplier
S K Industrial Products
Location
Ajmeri Gate, Delhi, India
Technical note: Confirm the maximum stroke for the selected bore, allowable pressure, temperature limits, rod dimensions, mounting compatibility, and other operating parameters against the manufacturer's datasheet before ordering.
What Is an Airmax AX102 Round Body Pneumatic Cylinder?
A pneumatic cylinder is a mechanical actuator that converts compressed-air energy into linear motion. It is commonly used to move, position, push, pull, clamp, or lift loads in compatible industrial machinery.
The Airmax AX102 Round Body Pneumatic Air Cylinder is offered in multiple bore sizes and stroke lengths, allowing users to select a suitable configuration for their equipment and operating requirements.
The correct cylinder depends on the required force, travel distance, operating pressure, load, mounting arrangement, and available installation space.
Key Features and Benefits of the Airmax AX102 Pneumatic Cylinder
1. Multiple Bore Sizes
Available bore sizes range from 32 mm to 125 mm, providing options for different force and installation requirements.
2. Flexible Stroke Lengths
The listed stroke range starts at 25 mm and extends to 1000 mm, with lengths up to 2000 mm specified for applicable configurations. Confirm availability for the required bore and stroke combination.
3. Multiple Mounting Arrangements
Various mounting options help engineers integrate the cylinder into different machine structures and movement arrangements.
4. Linear Motion for Automation
Pneumatic cylinders are commonly used to perform repetitive linear movements in production machinery and automation systems.
5. Compressed-Air Operation
The specified working medium is filtered and lubricated compressed air. Follow the manufacturer's air preparation and lubrication recommendations.
6. Application-Specific Configuration
Selecting the correct bore, rod diameter, stroke, and mounting configuration helps ensure compatibility with the intended machine.
Applications of Airmax Round Body Pneumatic Air Cylinders
The Airmax AX102 pneumatic cylinder may be suitable for compatible applications such as:
Industrial automation machinery
Material-handling equipment
Manufacturing and assembly lines
Pneumatic clamping systems
Packaging machinery
Component positioning equipment
Machine tools
Repetitive pushing and pulling operations
Pneumatic fixtures and jigs
General industrial pneumatic systems
Application suitability depends on the cylinder's force capacity, stroke, load, speed, mounting arrangement, and operating conditions.
Available Bore Sizes and Piston Rod Diameters
Bore Diameter
Piston Rod Diameter
32 mm
12 mm
40 mm
16 mm
50 mm
20 mm
63 mm
20 mm
80 mm
25 mm
100 mm
25 mm
125 mm
32 mm
These dimensions follow the specifications supplied for the AX102 model. Verify the selected configuration with the manufacturer before placing an order.
Mounting Options for Airmax AX102 Pneumatic Cylinders
The supplied mounting options include:
Female clevis mounting
Male clevis mounting
Wall bracket mounting
Eye rod mounting
Fork mounting
Clevis foot bracket mounting
Clevis foot mounting
Foot mounting
Front trunnion mounting
Rear trunnion mounting
Centre trunnion mounting
Pivot mounting
Rod end aligner mounting
Front flange mounting
Rear flange mounting
Female and male clevis wall bracket configurations
How to choose a mounting type: Consider the direction of movement, available space, alignment, pivot requirements, mechanical load, and cylinder attachment points. Confirm compatibility with the specific AX102 cylinder configuration.
How to Select the Right Pneumatic Cylinder
Before purchasing an Airmax AX102 cylinder, consider these factors:
Bore size: Select the bore according to the required force at the available operating pressure.
Stroke length: Choose the required travel distance for the application.
Piston rod diameter: Verify the rod dimensions and the expected load.
Operating pressure: Ensure the supply pressure is within the specified operating range.
Mounting arrangement: Choose a mounting type that fits the machine structure and motion requirements.
Air preparation: Use compressed air prepared according to the manufacturer's specifications.
Operating conditions: Consider load, speed, duty cycle, alignment, and environmental conditions.
Correct sizing can help support safe operation, reliable movement, and longer service life.
Why Choose S K Industrial Products?
S K Industrial Products supplies pneumatic products, industrial valves, pneumatic cylinders, and automation components for industrial customers.
We cater to enquiries from machine manufacturers, maintenance teams, industrial buyers, and system integrators seeking pneumatic components for their equipment.
Contact us for:
Airmax AX102 pneumatic cylinder enquiries
Bore and stroke selection assistance
Mounting configuration identification
Pricing and product availability
Pneumatic valves and FRL units
Related industrial automation components
Our team can assist you in identifying a suitable cylinder configuration based on your application requirements.
Frequently Asked Questions (FAQs)
1. What is the Airmax AX102 pneumatic cylinder?
The Airmax AX102 is a round body pneumatic air cylinder designed to convert compressed-air energy into linear mechanical movement in compatible pneumatic systems.
2. Which bore sizes are available in the Airmax AX102 cylinder?
The supplied specifications list bore sizes of 32 mm, 40 mm, 50 mm, 63 mm, 80 mm, 100 mm, and 125 mm.
3. What are the piston rod diameters for the AX102 cylinder?
The listed rod diameters are 12 mm, 16 mm, 20 mm, 20 mm, 25 mm, 25 mm, and 32 mm, respectively, corresponding to the seven bore sizes.
4. What stroke lengths are available?
The specified stroke range is 25 mm to 1000 mm, with lengths up to 2000 mm also indicated. Confirm the available stroke for the required bore size.
5. What is the operating pressure range of the AX102 cylinder?
The supplied specifications state 0.5 to 10 kg/cm². Verify the manufacturer's documentation for the permissible operating range and applicable conditions.
6. What is the specified operating temperature?
The supplied product information specifies 80°C. Confirm the manufacturer's temperature limits for the selected cylinder and seal configuration.
7. What medium is used to operate the AX102 pneumatic cylinder?
The specified working medium is filtered and lubricated compressed air. Follow the manufacturer's air quality and lubrication recommendations.
8. Which mounting options are available?
The listed options include clevis, foot, wall bracket, eye rod, fork, pivot, trunnion, rod end aligner, and front or rear flange mounting configurations. Confirm the mounting type available for the selected model and size.
9. How do I choose the correct bore size?
Choose the bore according to the required cylinder force, available operating pressure, load, friction, and safety margin. Consider both extension and retraction forces when sizing the cylinder.
10. How do I calculate the approximate extension force?
The theoretical extension force can be estimated using:
Force = Pressure × Piston Area
For pressure in N/mm² and bore area in mm², the result is in newtons.
Actual usable force is lower due to friction and operating losses. Retraction force is also lower for a conventional single-rod cylinder because the rod reduces the effective piston area.
11. Can the Airmax AX102 cylinder be used in industrial automation?
Pneumatic cylinders are commonly used in automation systems for positioning, clamping, pushing, pulling, and repetitive linear movement. Confirm that the AX102 configuration meets the application's load, stroke, speed, and mounting requirements.
12. How do I choose the right mounting arrangement?
Select the mounting type based on the cylinder's movement, attachment points, alignment, mechanical loads, and available installation space. Consult the manufacturer's dimensional drawing before installation.
13. Where can I enquire about Airmax AX102 cylinders in Delhi?
You can contact S K Industrial Products, Ajmeri Gate, Delhi, for enquiries about Airmax AX102 pneumatic cylinders, bore sizes, stroke lengths, mounting options, pricing, and availability.
14. Does S K Industrial Products accept enquiries from across India?
Yes, S K Industrial Products accepts enquiries from customers in Delhi and across India. Contact the company to confirm stock availability and delivery arrangements.
Enquire About Airmax AX102 Pneumatic Cylinders
Looking for an Airmax Round Body Pneumatic Air Cylinder for your industrial machinery or automation system?
Contact S K Industrial Products for product details, bore and stroke selection, mounting options, pricing enquiries, and availability.
S K Industrial Products
Pneumatic Products | Industrial Valves | Automation Components
Address: 158G, 1st Floor, Manohar Mansion, Ajmeri Gate, Delhi – 110006, India
Landmark: Opposite Gali Shahtara
Phone: 9873288914 / 9810587914
Email: skipvijay@gmail.com
Contact our team for your pneumatic cylinder and industrial automation requirements.
Pneumatic Cylinders | Industrial Automation | Pneumatic Products Supplier in Delhi, India
Looking for a reliable Airmax Round Body Pneumatic Air Cylinder AX102 for your industrial automation or compressed-air application? S K Industrial Products offers enquiries for Airmax pneumatic cylinders designed to provide linear motion in compatible industrial machinery and pneumatic systems.
The Airmax AX102 Round Body Pneumatic Air Cylinder is available in multiple bore sizes, different stroke lengths, and a wide range of mounting configurations. It is suitable for applications requiring controlled linear movement, clamping, pushing, pulling, positioning, and material handling.
At S K Industrial Products, located in Ajmeri Gate, Delhi, we supply pneumatic products, industrial valves, cylinders, and automation components to customers in Delhi and across India.
Contact us for product availability, pricing, bore size selection, stroke requirements, and mounting options for your application.
Airmax AX102 Pneumatic Cylinder – Technical Specifications
Specification
Details
Brand
Airmax
Product Name
Round Body Pneumatic Air Cylinder
Model
AX102
Product Category
Pneumatic Cylinder
Bore Sizes
32, 40, 50, 63, 80, 100, 125 mm
Piston Rod Diameters
12, 16, 20, 20, 25, 25, 32 mm, respectively
Stroke Length
25 mm to 1000 mm; up to 2000 mm as specified
Operating Pressure
0.5–10 kg/cm²
Specified Temperature
80°C
Working Medium
Filtered and lubricated compressed air
Mounting Options
Female Clevis, Wall Bracket, Eye Rod, Fork, Clevis Foot Bracket, Clevis Foot, Foot Mounting, Front and Rear Trunnion, Male Clevis, Pivot, Rod End Aligner, Front and Rear Flange, Female and Male Clevis Wall Bracket, Centre Trunnion
Supplier
S K Industrial Products
Location
Ajmeri Gate, Delhi, India
Technical note: Confirm the maximum stroke for the selected bore, allowable pressure, temperature limits, rod dimensions, mounting compatibility, and other operating parameters against the manufacturer's datasheet before ordering.
What Is an Airmax AX102 Round Body Pneumatic Cylinder?
A pneumatic cylinder is a mechanical actuator that converts compressed-air energy into linear motion. It is commonly used to move, position, push, pull, clamp, or lift loads in compatible industrial machinery.
The Airmax AX102 Round Body Pneumatic Air Cylinder is offered in multiple bore sizes and stroke lengths, allowing users to select a suitable configuration for their equipment and operating requirements.
The correct cylinder depends on the required force, travel distance, operating pressure, load, mounting arrangement, and available installation space.
Key Features and Benefits of the Airmax AX102 Pneumatic Cylinder
1. Multiple Bore Sizes
Available bore sizes range from 32 mm to 125 mm, providing options for different force and installation requirements.
2. Flexible Stroke Lengths
The listed stroke range starts at 25 mm and extends to 1000 mm, with lengths up to 2000 mm specified for applicable configurations. Confirm availability for the required bore and stroke combination.
3. Multiple Mounting Arrangements
Various mounting options help engineers integrate the cylinder into different machine structures and movement arrangements.
4. Linear Motion for Automation
Pneumatic cylinders are commonly used to perform repetitive linear movements in production machinery and automation systems.
5. Compressed-Air Operation
The specified working medium is filtered and lubricated compressed air. Follow the manufacturer's air preparation and lubrication recommendations.
6. Application-Specific Configuration
Selecting the correct bore, rod diameter, stroke, and mounting configuration helps ensure compatibility with the intended machine.
Applications of Airmax Round Body Pneumatic Air Cylinders
The Airmax AX102 pneumatic cylinder may be suitable for compatible applications such as:
Industrial automation machinery
Material-handling equipment
Manufacturing and assembly lines
Pneumatic clamping systems
Packaging machinery
Component positioning equipment
Machine tools
Repetitive pushing and pulling operations
Pneumatic fixtures and jigs
General industrial pneumatic systems
Application suitability depends on the cylinder's force capacity, stroke, load, speed, mounting arrangement, and operating conditions.
Available Bore Sizes and Piston Rod Diameters
Bore Diameter
Piston Rod Diameter
32 mm
12 mm
40 mm
16 mm
50 mm
20 mm
63 mm
20 mm
80 mm
25 mm
100 mm
25 mm
125 mm
32 mm
These dimensions follow the specifications supplied for the AX102 model. Verify the selected configuration with the manufacturer before placing an order.
Mounting Options for Airmax AX102 Pneumatic Cylinders
The supplied mounting options include:
Female clevis mounting
Male clevis mounting
Wall bracket mounting
Eye rod mounting
Fork mounting
Clevis foot bracket mounting
Clevis foot mounting
Foot mounting
Front trunnion mounting
Rear trunnion mounting
Centre trunnion mounting
Pivot mounting
Rod end aligner mounting
Front flange mounting
Rear flange mounting
Female and male clevis wall bracket configurations
How to choose a mounting type: Consider the direction of movement, available space, alignment, pivot requirements, mechanical load, and cylinder attachment points. Confirm compatibility with the specific AX102 cylinder configuration.
How to Select the Right Pneumatic Cylinder
Before purchasing an Airmax AX102 cylinder, consider these factors:
Bore size: Select the bore according to the required force at the available operating pressure.
Stroke length: Choose the required travel distance for the application.
Piston rod diameter: Verify the rod dimensions and the expected load.
Operating pressure: Ensure the supply pressure is within the specified operating range.
Mounting arrangement: Choose a mounting type that fits the machine structure and motion requirements.
Air preparation: Use compressed air prepared according to the manufacturer's specifications.
Operating conditions: Consider load, speed, duty cycle, alignment, and environmental conditions.
Correct sizing can help support safe operation, reliable movement, and longer service life.
Why Choose S K Industrial Products?
S K Industrial Products supplies pneumatic products, industrial valves, pneumatic cylinders, and automation components for industrial customers.
We cater to enquiries from machine manufacturers, maintenance teams, industrial buyers, and system integrators seeking pneumatic components for their equipment.
Contact us for:
Airmax AX102 pneumatic cylinder enquiries
Bore and stroke selection assistance
Mounting configuration identification
Pricing and product availability
Pneumatic valves and FRL units
Related industrial automation components
Our team can assist you in identifying a suitable cylinder configuration based on your application requirements.
Frequently Asked Questions (FAQs)
1. What is the Airmax AX102 pneumatic cylinder?
The Airmax AX102 is a round body pneumatic air cylinder designed to convert compressed-air energy into linear mechanical movement in compatible pneumatic systems.
2. Which bore sizes are available in the Airmax AX102 cylinder?
The supplied specifications list bore sizes of 32 mm, 40 mm, 50 mm, 63 mm, 80 mm, 100 mm, and 125 mm.
3. What are the piston rod diameters for the AX102 cylinder?
The listed rod diameters are 12 mm, 16 mm, 20 mm, 20 mm, 25 mm, 25 mm, and 32 mm, respectively, corresponding to the seven bore sizes.
4. What stroke lengths are available?
The specified stroke range is 25 mm to 1000 mm, with lengths up to 2000 mm also indicated. Confirm the available stroke for the required bore size.
5. What is the operating pressure range of the AX102 cylinder?
The supplied specifications state 0.5 to 10 kg/cm². Verify the manufacturer's documentation for the permissible operating range and applicable conditions.
6. What is the specified operating temperature?
The supplied product information specifies 80°C. Confirm the manufacturer's temperature limits for the selected cylinder and seal configuration.
7. What medium is used to operate the AX102 pneumatic cylinder?
The specified working medium is filtered and lubricated compressed air. Follow the manufacturer's air quality and lubrication recommendations.
8. Which mounting options are available?
The listed options include clevis, foot, wall bracket, eye rod, fork, pivot, trunnion, rod end aligner, and front or rear flange mounting configurations. Confirm the mounting type available for the selected model and size.
9. How do I choose the correct bore size?
Choose the bore according to the required cylinder force, available operating pressure, load, friction, and safety margin. Consider both extension and retraction forces when sizing the cylinder.
10. How do I calculate the approximate extension force?
The theoretical extension force can be estimated using:
Force = Pressure × Piston Area
For pressure in N/mm² and bore area in mm², the result is in newtons.
Actual usable force is lower due to friction and operating losses. Retraction force is also lower for a conventional single-rod cylinder because the rod reduces the effective piston area.
11. Can the Airmax AX102 cylinder be used in industrial automation?
Pneumatic cylinders are commonly used in automation systems for positioning, clamping, pushing, pulling, and repetitive linear movement. Confirm that the AX102 configuration meets the application's load, stroke, speed, and mounting requirements.
12. How do I choose the right mounting arrangement?
Select the mounting type based on the cylinder's movement, attachment points, alignment, mechanical loads, and available installation space. Consult the manufacturer's dimensional drawing before installation.
13. Where can I enquire about Airmax AX102 cylinders in Delhi?
You can contact S K Industrial Products, Ajmeri Gate, Delhi, for enquiries about Airmax AX102 pneumatic cylinders, bore sizes, stroke lengths, mounting options, pricing, and availability.
14. Does S K Industrial Products accept enquiries from across India?
Yes, S K Industrial Products accepts enquiries from customers in Delhi and across India. Contact the company to confirm stock availability and delivery arrangements.
Enquire About Airmax AX102 Pneumatic Cylinders
Looking for an Airmax Round Body Pneumatic Air Cylinder for your industrial machinery or automation system?
Contact S K Industrial Products for product details, bore and stroke selection, mounting options, pricing enquiries, and availability.
S K Industrial Products
Pneumatic Products | Industrial Valves | Automation Components
Address: 158G, 1st Floor, Manohar Mansion, Ajmeri Gate, Delhi – 110006, India
Landmark: Opposite Gali Shahtara
Phone: 9873288914 / 9810587914
Email: skipvijay@gmail.com
Contact our team for your pneumatic cylinder and industrial automation requirements.
Keywords
