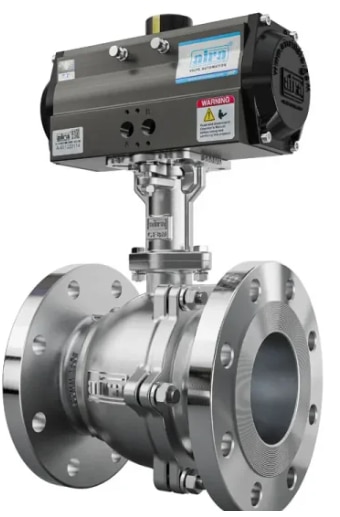

2 Piece Extended Shaft Flanged End Ball Valve
Description
Design & Manufacturer
ASME B 16.34 / BS EN ISO 17292
Valve Face To Face Dimension
ASME B 16.10 / BS EN ISO 17292
Inspection And Testing
API 598/ ISO-5208/ BS EN 12266-1
Size Range
1/2“ To 8” Flanged
Pressurre Class
150#
Body Material
CAST IRON(CI),DUCTILE IRON(DI), S.G IRON(SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONELCF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M
Steam Material
Aisi 410, Ss 304, Ss 316, Ss 304l, Ss 316l, Duplex 2205, Duplex 2507, Monel
Seat Material
PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK
Leakage Class
ISO 5208 Class VI/ FCI - 70 - 2/ ASME B 16, 16. 104 (BUBBLE TIGHT SHUTOFF)
End Connection
ISO 7-1 FOR BSPT / BSP/ ASME B 1.201 FOR NPT FOR S/E ASME 16.11 FOR SOCKET WELD
Tempreature Range
PTFE : Upto 180°C/ RPTFE/ TFM - 220C°
Media
Air/ Water/ Oil & Gas
Ball Material
CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M
Ball Type
Hollow & Solid
Flange Drilling
Asme B 16.5 Class 150#/ Din/ Jis
Certification
Design CE, POD, EIL Approved
Features & Benefits
Thrice Types Of Extension Bonnet Lenghts Available To Optimize
The Location Of The Gland Packing At Ambient Temperature Thus Preventing Freeze-damage By Low Temperature Fluid, Cavity Pressure Self Relief Construction In Valve, Cheuron Seal Design Minimizes Leakage After Thousand of Cycles, Low Operating Torque For Smooth Operations, Fire Safe Design Available For Flammable Applications, Fugitive Emissions Control For Flammable And Non-flammable Applications.
