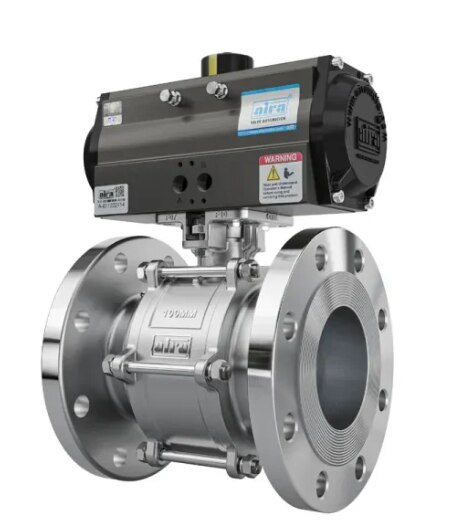

3 Piece Flanged End Ball Valve 150#
Description
Design & Manufacturer
ASME B16.34 / BS EN ISO 17292
Valve Face To Face Dimension
ASME B16.10/ 150#
Inspection & Testing
API 598/ ISO-5208/ BS EN 12266-1
Size Range
1/2“ to 14”
Temperature Range
PTFE : Upto 180°C/ PEEK : 250°/ RPTFE : Upto 220°C/ AIRA250
Ball Material
CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M, INCONEL
Ball Type
Hollow & Solid
Certification
Design CE Approved, SIL3 Approved, IBR Approved, POD Approved, EIL Approved & Fire Safe Approved
Leakage Class
ISO 5208 Class VI/ ASME B16.104/ ANSI FCI 70-2( BUBBLE TIGHT SHUTOFF)
End Connection
ASME B16.5 CLASS 150 FOR FLANGED
Pressurre Class
150#
Media
Air/ Water/ Oil & Gas Etc…
Body Material
CF8, CF8M, CF3M, SS 304L, WCB, DUCTILE IRON(DI), DUPLEX, HAST ALLOY, MONEL
Stem Material
AISI 410, AISI 304, AISI 316, AISI 304l, AISI 316L, DUPLEX 2205, DUPLEX 2507, MONEL
Seat Material
PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK
Flange Drilling
ASME B16.5 Class 150#/ Din/ Jis
1 – High Cycle Life.
2 – Anti static Design & Fire Safe Design As Per API 607.
3 – Blow Out proof Stem.
4 – Locking Handle Available.
5 – ISO 5211 Mounting Pad Available.
6 – V-type Cheuron Gland Packing, Which Leads To Zero Leak After Thousand Of Cycle.
