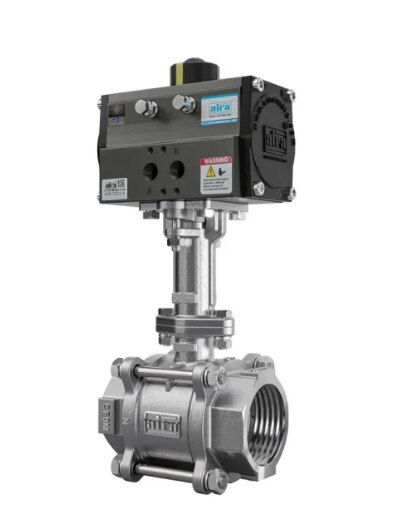

3 Piece Extended Shaft Screwed End Ball Valve

Design & Manufacturer

ASME B16.34/ BS EN ISO 17292

Valve Face To Face Dimension

ASME B16.10

Inspection & Testing

API 598/ ISO-5208/ BS EN 12266-1

Size Range

1/2“ To 4” Screwed

Tempreature Range

PTFE : Upto 180°C / PEEK : 250° , RPTFE/ TFM -220°C

Pressurre Class

150#

Stem Material

AISI 410, SS 304, SS 316, SS 304L, SS 316L, DUPLEX 2205, DUPLEX 2507, MONEL

Seat Material

PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK

Leakage Class

ISO 5208 Class VI/ FCI - 70 - 2/ ASME 16.104/ BUBBLE TIGHT SHUTOFF

End Connection

ISO 7-1 FOR BSPT/ BSP/ ASME B1.201 FOR NPT FOR S/E ASME 16.11 FOR SOCKET WELD

Media

Air/ Water/ Oil & Gas

Body Material

CF8, CF8M, CF3M, SS 304L, WCB, DUPLEX, HAST ALLOY, MONEL

Ball Material

CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M

Ball Type

Hollow & Solid

Certification

Design CE Approved & POD Approved

Features & Benefits

1 – Three Types Of Extension Bonnet Lengths Available To Optimize The Location Of The Gland Packing At Ambient Temperature Thus Preventing Freeze-damage By Low Temperature Fluid.

2 – Cavity Pressure Self Relief Construction In Valve.

3 – Chevron Seal Design Minimizes Leakage After Thousand Of Cycles.

4 – Low Operating Torque For Smooth Operations.

5 – Fire Safe Design Available For Flammable Applications.

6 – Fugitive Emissions Control For Flammable And Non-flammable Applications.

7 – Best For Cryogenic Application.
