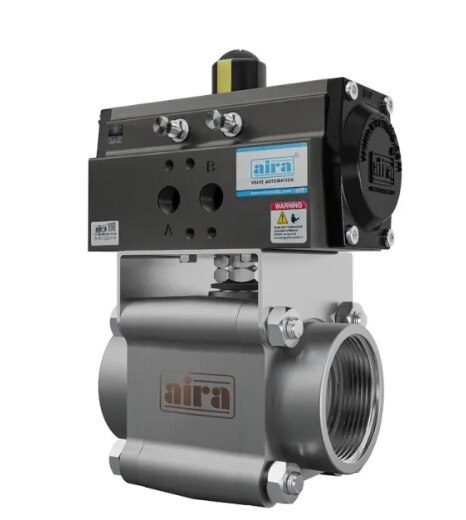

3 Piece Screwed End Ball Valve 800#
Description
Design & Manufacturer
ASME B16.34 / BS EN ISO 17292
Valve Face To Face Dimension
As Per Manufacturer Std.
Inspection & Testing
API 598/ ISO-5208/ BS EN 12266-1
Size Range
1/2“ To 2” SCREWED/ SOCKET WELD
Tempreature Range
Upto 180°C
Pressurre Class
800#
Certification
POD
Seat Material
CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK
Leakage Class
ISO 5208 Class VI/ FC1-70-2/ ASME B16,16.104
End Connection
ISO 7-1 For Screwed BSPT/ ASME B1.20.1 For Screwed NPT/ ASME B 16.11 for Socket Weld
Media
Air/ Water/ Oil & Gas
Body Material
A105, A106, AF 16.11
Ball Material
CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M
Ball Type
Solid
Stem Material
AISI 410, AISI 304, AISI 316, AISI 304L, AISI 316L, DUPLEX 2205, DUPLEX 2507, MONEL
Features & Benefits
1 – Process Steam Service.
2 – Chemical & Petrochemicals.
3 – Tyre Industries.
4 – Power Plants.
5 – Textiles.
