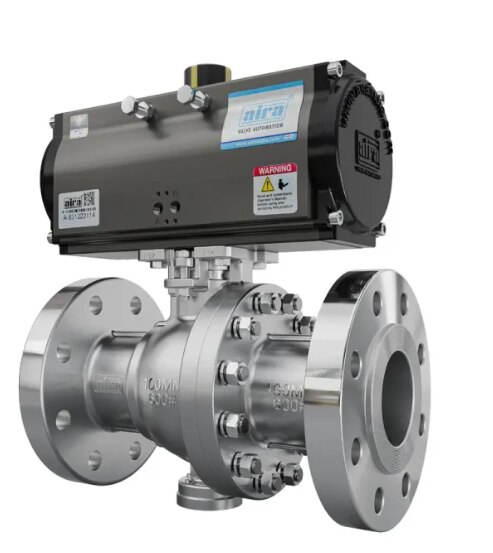

2 Piece Flanged End Ball Valve 600#
Description
Design & Manufacturer
ASME B 16.34/ BS EN ISO 17292
Valve Face To Face Dimension
ASME B 16.10/ BS EN ISO 17292
Inspection & Testing
API 598/ ISO - 5208/ BS EN 12266 - 1
Size Range
1/2“ To 2” Floating, 2.1/2'' To 6'' Trunnion
Tempreature Range
For, CFT & GFT Upto 200°C For, PEEK Upto 250°C
Ball Material
CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M
Ball Type
Hollow & Solid
Flange Drilling
Asme B 16.5
Leakage Class
ISO 5208 Class VI/ FCI - 70- 2/ ASME,ANSI B 16,16.104
End Connection
ASME B 16.5 Class 600
Pressurre Class
600#
Media
Air/ Water/ Oil & Gas Etc…
Body Material
DUCTILE IRON(DI), S.G IRON(SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL.
Stem Material
Aisi 410, Aisi 304, Aisi 316, Aisi 304l, Aisi 316l, Duplex 2205, Duplex 2507, Monel
Seat Material
PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK
Certification
Design CE, SIL3, POD & EIL Approved
