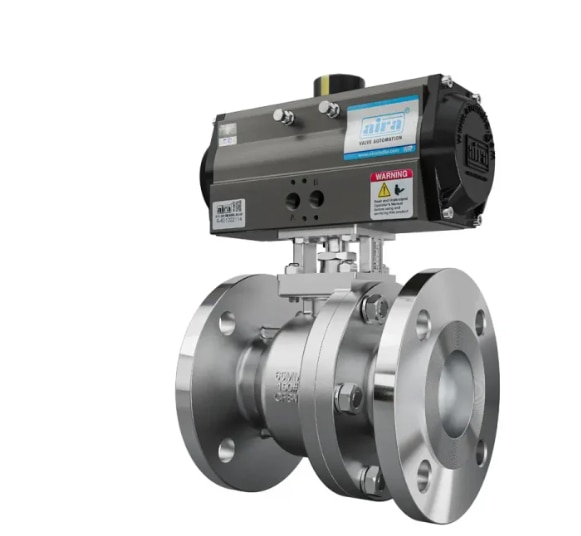

2 Piece High Performance Floating Ball Valves 150#

Design & Manufacturer

ASME B 16.34/ BS EN ISO 17292

Valve Face To Face Dimension

ASME B 16.10/ BS EN ISO 17292

Inspection & Testing

API 598/ ISO - 5208/ BS EN 12266- 1

Size Range

1/2“ to 12” Flanged 150#

Fugitive Emissions

ISO 15848-1 A 2017

Ball Type

CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M

Ball Material

Hollow For 150#

Stem Material

Aisi 410, Ss 304, Ss 316, Ss 304l, Ss 316l, Duplex 2205, Duplex 2507, Monel

Certification

Design CE, SIL3, IBR, Fire Safe, EIL Approved

Leakage Class

ISO 5208 Class VI/ FCI - 70- 2/ ASME, ANSI 16,16.104

End Connection

ASME B 16.5 CLASS 150#

Temperature Range

Upto 180°C

Pressurre Class

150#

Media

Air/ Water/ Oil & Gas

Body Material

CAST IRON(CI),DUCTILE IRON(DI), S.G IRON(SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL

Seat Material

PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK, D-PLASTIC

Flange Drilling

Asme B 16.5 Class 150#

Features & Benefits

1- Blow- Out Proof Stem.

2- Dual Shaft Seals Eliminate Leakage.

3- Anti-Static Stem Device.

4- API 607 Fire Safe Design.

5- Mirror Finished Ball With Slot Vented Ball For Thermal Expansion.
