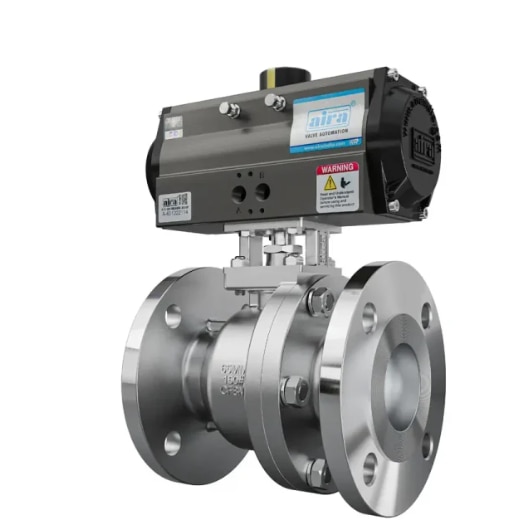

2 Piece High Performance Floating Ball Valves 300#

Valve Face To Face Dimension

ASME B 16.10/ BS EN ISO 17292

Inspection & Testing

API 598/ ISO - 5208/ BS EN 12266- 1

Size Range

1/2“ to 8” Flanged 300#

Fugitive Emissions

ISO 15848-1 A 2017

Ball Type

CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M

Ball Material

Solid For 300#

Stem Material

Aisi 410, Ss 304, Ss 316, Ss 304, Ss 316, Duplex 2205, Duplex 2507, Monel

Certification

Design CE, SIL3, IBR, Fire Safe, EIL Approved

Leakage Class

ISO 5208 Class VI/ FCI - 70- 2/ ASME, ANSI 16,16.104

End Connection

ASME B 16.5 CLASS 300#

Temperature Range

Upto 180°C

Pressure Class

300#

Media

Air/ Water/ Oil & Gas

Body Material

CAST IRON(CI),DUCTILE IRON(DI), S.G IRON(SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL

Seat Material

PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK, D-PLASTIC

Flange Drilling

Asme B 16.5 Class 300#

1- Blow- Out Proof Stem.

2- Dual Shaft Seals Eliminate Leakage.

3- Anti-Static Stem Device.

4- API 607 Fire Safe Design.

5- Mirror Finished Ball With Slot Vented Ball For Thermal Expansion.
