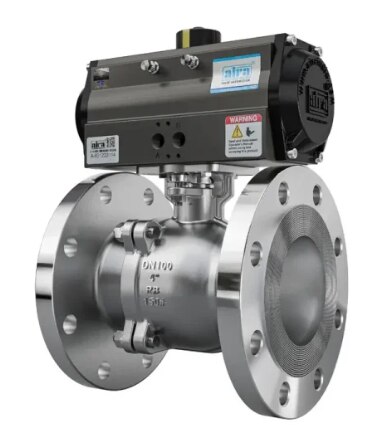

2 Piece Reduce Bore Flanged End Ball Valve

Design & Manufacturer

ASME B 16.34/ BS EN ISO 17292

Valve Face To Face Dimension

ASME B 16.10/ BSEN ISO 17292

Inspection And Testing

API 598/ ISO-5208/ BS EN 12266-1

Size Range

3/4“ To 14” Flanged 150#

Tempreature Range

PTFE : Upto 180°C RPTFE/ TFM-220C°

Ball Material

CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M

Ball Type

Hollow, Reduce, Solid

Flange Drilling

Asme B 16.5 Class 150#/ Din/ Jis

Leakage Class

ISO 5208 Class VI/ FCI - 70 - 2/ ASME B 16, 16. 104 (BUBBLE TIGHT SHUT OFF)

End Connection

ASME B 16.5 CLASS 150 FOR FLANGE

Pressurre Class

150#

Media

Air / Water / Oil & Gas

Body Material

CAST IRON(CI),DUCTILE IRON(DI), S.G IRON(SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL

Stem Material

Aisi 410, Ss 304, Ss 316, Ss 304l, Ss 316l, Duplex 2205, Duplex 2507, Monel

Seat Material

PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK

Certification

Design CE, SIL3, IBR, POD, Fire Safe, EIL Approved

Features & Benefits

1- High Cycle Life.

2- Antistatic Design.

3- Blow Outproof Stem.

4- Locking Handle Available.

5- ISO 5211 Mounting Pad Available.

6- V-type Cheuron Gland Packing, Which Leads To Zero Leak

After Thousands of Cycle.
