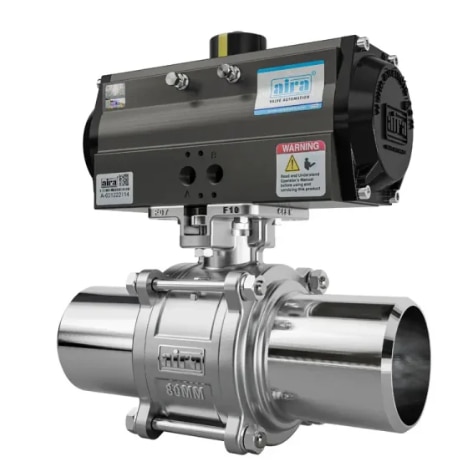

3 Piece Butt Weld Ball Valve

Design & Manufacturer

ASME B16.34/ BS EN ISO 17292

Valve Face To Face Dimension

As Per Manufacturing

Inspection & Testing

API 598/ ISO-5208/ BS EN 12266-1

Size Range

1/2“ to 4”

Tempreature Range

PTFE : Upto 180°C/ PEEK : 250°, RPTFE : Upto 220°C/ AIRA250

Pressurre Class

150#

Stem Material

AISI 410, AISI 304, AISI 316, AISI 304L, AISI 316L, DUPLEX 2205, DUPLEX 2507, MONEL

Seat Material

PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK

Leakage Class

ISO 5208 Class VI/ ASME B16.104, ANSI FCI 70-2( BUBBLE TIGHT SHUTOFF)

End Connection

ASME B16.25 BUTT-WELD ENDS

Media

Air/ Water/ Oil & Gas

Body Material

WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL.

Ball Material

CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M

Ball Type

Hollow & Solid

Certification

Design CE Approved, SIL3 Approved, IBR Approved, POD Approved & Fire Safe Approved

Features & Benefits

1- High Cycle Life.

2- Antistatic Design & Fire Safe Design As Per API 607.

3- Blow Outproof Stem.

4- Locking Handle Available.

5- ISO 5211 Mounting Pad Available.

6- V-type Cheuron Gland Packing, Which Leads To Zero Leak After Thousand Of Cycle.
