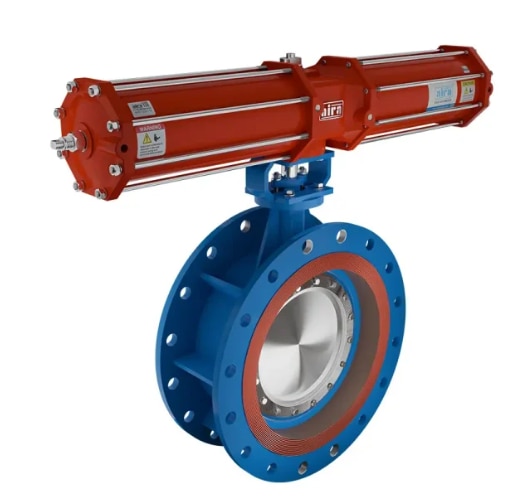

Double Offset Metal With Grafoil Laminated Seated Double Flanged Butterfly Valve

Size Range

12“ To 60” (200MM To 1500MM)

Temperature Range

Upto 600°C

Working Pressure

PN10

Shutoff Rating

Tight Shutoff

Body Style

Double Flange

Flange Drilling

150#, 300#, AWWA, Series-A, Series-B, EN 1092-1, EN 1092-2

Body Materials

M.S, SS 304 / 316

Stem Materials

SS 304 / 316 / 410 / 17-4 PH / 316L

Seat Materials

SS 304 / 316

Disc Materials

M.S / SS 304 / 316

Design Standard

BSEN 593, ISI 3095, API 609, AWWA C 504

Testing Standard

API 598, BSEN - 12266-1, AWWA C 504

Face To Face

API - 609, BSEN 558, AWWA C 504 / 516

Features & Benefits

1 – Double Offset Design: Reduces friction and wear, providing enhanced sealing and extended valve life.

2 – Metal Construction: Ensures durability and strength, suitable for high-pressure and high-temperature applications.

3 – Grafoil Laminated Seat: Offers superior resistance to high temperatures and pressures, ensuring a tight, reliable seal.

4 – Double Flanged Construction: Provides secure, stable installation and alignment in piping systems.

5 – Versatile Application: Ideal for demanding environments, including chemical processing, power generation, and industrial systems.

6 – Low Maintenance: Designed for minimal upkeep while delivering consistent, dependable performance.
