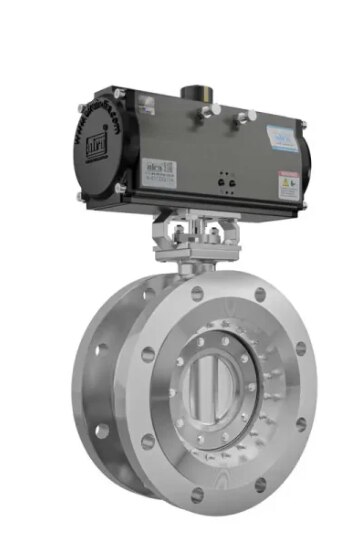

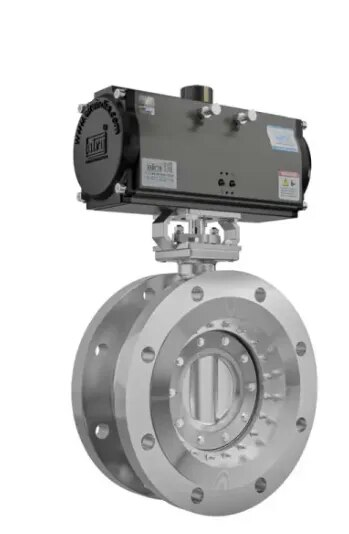

Double Offset Rubber Seated Double Flanged Butterfly Valve

Size Range

3“ To 60” (80MM To 1500MM)

Tempreature Range

Upto 220°C

Pressurre Class

PN 50

Shutoff Rating

Tight Shut Off

Body Style

Double Flanged

Flange Drilling

150#, 300#, AWWA, Series-A, Series-B, EN 1092-1, EN 1092-2

Body Materials

WCB, CF8, CF8M, CF3M, DUPLEX, ALLOY - 20

Stem Materials

SS 304 / 316 / 410 / 17-4 PH / 316L / NITRONIC - 50 / DUPLEX 4A / 5A / 6A / 7A

Seat Materials

EPDM, EPDM - H, VITON

Disc Materials

WCB, CF8, CF8M, CF3M, DUPLEX, ALLOY - 20

Design Standard

BSEN 593, ISI 3095, API 609, AWWA C 504

Testing Standard

API 598, BSEN - 12266-1, AWWA C 504

Face To Face

API - 609, BSEN 558, AWWA C 504 / 516

End Connection

Flanged End 150#, 300#

Features & Benefits

1 – Double Offset Design: Reduces friction and wear, promoting smooth operation and extending valve life.

2 – Rubber Seat: Ensures a tight, reliable seal to prevent leakage.

3 – Double Flanged Construction: Provides secure, stable installation and alignment in piping systems.

4 – Robust Performance: Ideal for handling water, wastewater, and various other fluids.

5 – Durability: Built to withstand demanding industrial environments with minimal maintenance.

6 – Versatility: Suitable for a range of applications requiring reliable flow control.
