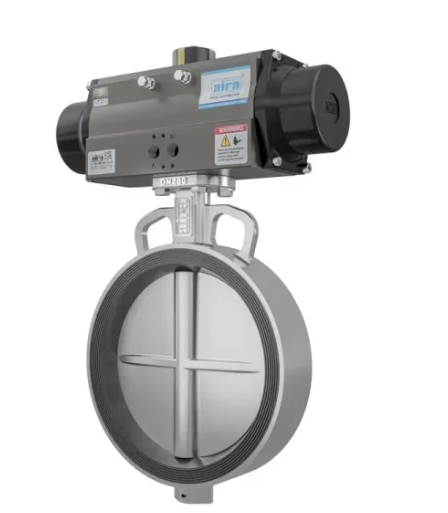

Rubber Lined Wafer Type Butterfly Valve

Size Range

1.1/2“ To 60” (40MM To 1500MM)

Tempreature Range

-20°C To 80°C For Nitrile Seat (Depending On MOC)

Pressurre Class

PN 10 / PN 16 (PN 20 On Request)

Body Style

Wafer Type

Flange Drilling

IS 6392 / EN 1092 - 1 / EN 1092 - 2 / ASME B 16.5 150#

Body Materials

S.G.I / C.I / D.I / WCB / CF8 / CF8M / CF3M / SS 304L / DUPLEX / HAST ALLOY / MONEL

Stem Materials

SS 304 / 316 / 410 / 17 - 4 PH / Super Duplex 2507 / 2205

Seat Materials

NBR / EPDM PTFE / MODIFIED PTFE / RPTFE / CFT / GFT / DEVLON / PEEK / NYLON / AIRA-250

Disc Materials

S.G.I / CF8 / CF8M / CF3M / WCB + ENP / HAST ALLOY / DUPLEX / MONEL / ASTM A - 995

Seat Leakage Class

Tight Shut Off

Flange Standard Conformity

ASME B16.5 / 16.47 Series A Class 150

Top Flange Drilling

ISO 5211

Design And Manufacturer

API 609 Category A / IS:13095 / BS EN 593

Valve Face To Face Dimension

Short Wafer As Per ISO 5752 TAB 5/API 609 Category A ISO 5752 TAB 1 / BS EN-593 / BS EN-558

Inspection & Testing

API 598 / BS EN 12266 -1

End Connection

Wafer type Suit 150#, Table'D', Table'E' & IS 6392 Table 11 ( PN 10 / PN 16 )

Features & Benefits

1 – Robust Construction: Made with durable materials and a rubber lining to enhance corrosion resistance and longevity.

2 – Efficient Flow Control: Designed for precise regulation of flow, minimizing pressure drops and turbulence.

3 – Compact Design: The wafer-type configuration allows for easy installation between flanges, saving space and reducing weight.

4 – Excellent Sealing Performance: The rubber lining ensures a tight seal, preventing leakage and enhancing operational reliability.

5 – Low Maintenance: Engineered for reliability, requiring minimal maintenance and ensuring long-term performance.

6 – Easy Operation: Manual or actuated options available for user-friendly operation in different settings.

7 – Temperature and Pressure Tolerance: Designed to withstand a range of temperatures and pressures, making it adaptable to various conditions.

8 – Standardized Flange Compatibility: Compatible with standard flange sizes, facilitating seamless integration into existing systems.

9 – Cost-Effective Solution: Offers an economical choice for effective flow management without compromising quality.
