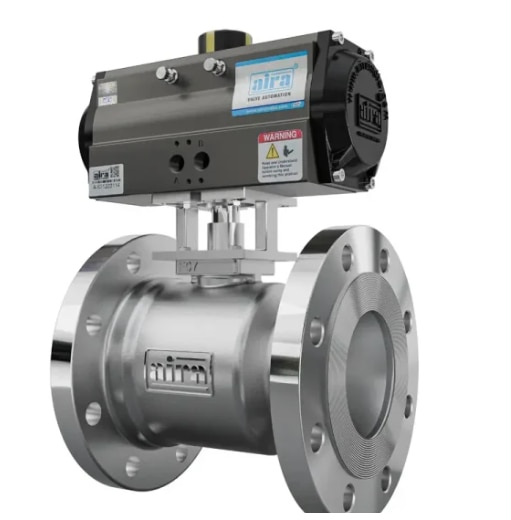

Single Piece Flanged End Ball Valve 150#

Design & Manufacturer

BS EN ISO 17292 / ASME B 16.34

Valve Face To Face Dimension

ASME B 16.10 - 150#

Inspection & Testing

API 598 / ISO-5208 / BS EN 12266-1

Temperature Range

PTFE : Upto 180°C / PEEK : 250° , RPTFE : Upto 220°C / AIRA250

Media

Air / Water / Oil & Gas

Ball Material

CF8, CF8M, WCB+ ENP, HAST ALLOY, DUPLEX, MONEL, CF3M

Stem Material

Aisi 410, Ss 304, Ss 316, Ss 304l, Ss 316l, Duplex 2205, Duplex 2507, Monel

Flange Drilling

Asme B 16.5 Class 150#/ Din/ Jis

Leakage Class

ISO 5208 Class VI / B16.104 , ANSI FCI 70-2( BUBBLE TIGHT SHUTOFF)

End Connection

ASME B 16.5 CLASS 150 FOR FLANGE END

Size Range

1/2“ to 6” Flanged 150#

Pressure Class

150#

Body Material

CAST IRON(CI), DUCTILE IRON(DI), S.G IRON(SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL

Ball Type

Hollow & Solid

Seat Material

PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK

Low Operating Torque

Positive Shut Off

Quick In Action

Compact Design

Longer Smooth Life

Locking Handle Available

Direct Mounting As Per ISO 5211
