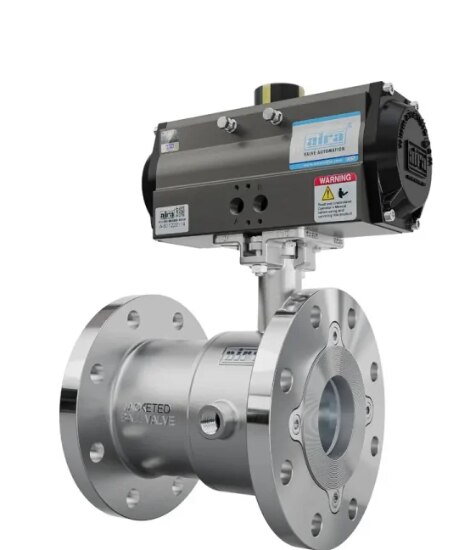

Single Piece Jacketed Flanged End Ball Valve 150#
In stock
Description
Size Range
1/2“ To 12” Flanged
Tempreature Range
PTFE : Upto 180°C
Pressurre Class
150#
Media
Air/ Water/ Oil & Gas
Body Material
CAST IRON(CI),DUCTILE IRON(DI), S.G IRON(SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL
Ball Material
CF8, CF8M, WCB+ ENP, HAST ALLOY, DUPLEX, MONEL, CF3M
Ball Type
Hollow & Solid
Stem Material
Aisi 410, Ss 304, Ss 316, Ss 304l, Ss 316l, Duplex 2205, Duplex 2507, Monel
Seat Material
PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK
Flange Drilling
Asme B 16.5 Class 150#/ Din/ Jis
Certification
Design POD Approved
Note
Peek Seat Is Not Possible
An ISO 5211 Direct Mounting Pad
V-type Cheuron Gland Packing
Which Leads To Leak After Thousands Of Cycle
Low Torque.
